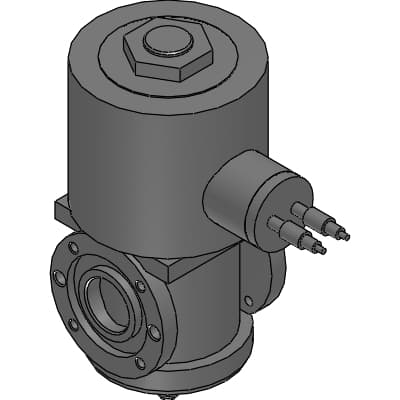

Product Model
HVB712-15F-12B-AC100V
Selling Points
- 1Direct acting poppet structure ensures precise control and reliability.
- 2High vacuum grease on O-rings for enhanced sealing and durability.
- 3Unrestricted mounting orientation for flexible installation options.
- 4Operating within a wide temperature range of 5°C to 55°C.
- 5Meets Class 130 (B) thermal class standards for high performance in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | HVB712 | Size variation | 7 : 70 mmmm |
Connection | 15F : Flange φ 52 | Orifice size | 12 : φ 12 |
Thermal class | B : Class 130 (B) | Option | Blank : None |
Voltage | AC 100V : 100 VAC 50/60 Hz | A | 70mm |
B | 145mm | C | 55.0mm |
D | 54mm | E | 42.4mm |
F | 4-M5mm | G | 106mm |
H | 75mm | J | 52mm |
K | 33mm | L | 107mm |
Specifications may be subject to change without notice
