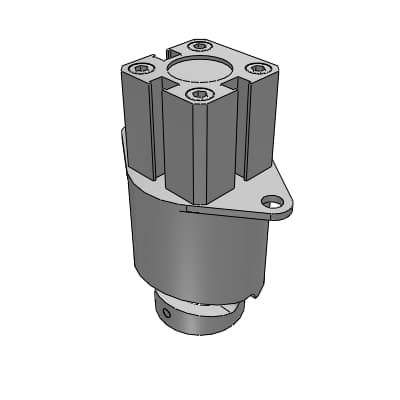

Product Model
HYA-221

Selling Points
- 1Ideal for sterilization in pharmaceutical and biopharmaceutical manufacturing processes.
- 2No coil and no heat generation, ensuring thermal stability.
- 3Simple structure with easy maintenance and tube holder function.
- 4Compatible with a wide range of tubes (φ3〜φ6, φ6〜φ10, φ10〜φ15).
- 5Achieves high sealing load with pneumatic drive, suitable for various processes including food processing and agriculture.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Model | HYA-22 | Actuation | 2 : Normally open |
Compatible tube | 2 : 1/4"~3/8"(φ6~φ10) | Tube wall thickness | 1 : 1/32" |
A | 35mm | B | 48mm |
C | 57.5mm | D | 2mm |
E | 8.0mm | F | 16.0mm |
G | 89.0mm | H | 45.0mm |
J | 11mm | K | 18mm |
L | 70mm | M | 60mm |
N | 48mm | P | M5mm |
X1 | 14.5mm | R1 | 11.0mm |
R2 | 5.5mm | X2 | 14.5mm |
X3 | 25mm | X4 | 6.5mm |
R3 | 1.5mm | BORE | 20 |
Specifications may be subject to change without notice
