Product Model

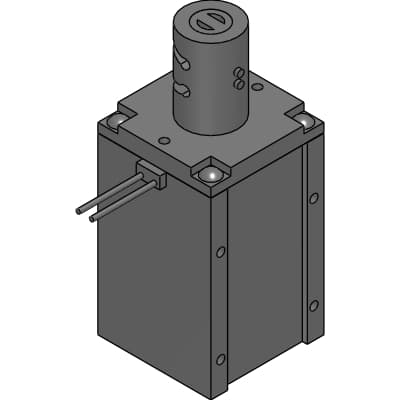

HYN-5-AC100V
Selling Points
- 1High-Purity Fluid Management: Designed for semiconductor and liquid crystal industries, ensuring ultra-clean environments.
- 2Compact and Lightweight: Compact design with a lightweight structure for easy integration into various systems.
- 3Wide Operating Range: Compatible with water, pure water, and chemical liquids, operating within 5°C to 50°C (41°F to 122°F).
- 4Reliable Performance: Recommended tightening torque of 0.5 to 0.7 N·m for consistent performance.
- 5Maintenance-Free Operation: Designed with a removable tube and compatible with various tube sizes (φ5 x φ3), reducing maintenance needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | HYN-5 | Code/Content | 5 : φ5xφ3 |
Rated voltage | AC100V : 100 VAC(50/60 Hz)V | A | 98.0mm |
B | 65.0mm | C | 33mm |
D | 23.0mm | E | 13.0mm |
F | 25mm | G | 43mm |
H | 36.5mm | J | 11mm |
K | 36.5mm | L | 4 x M4 depth 7mm |
M | 43mm | N | 0mm |
P | 0mm | Q | 36.5mm |
R | 4 x M4 depth 7mm |
Specifications may be subject to change without notice
