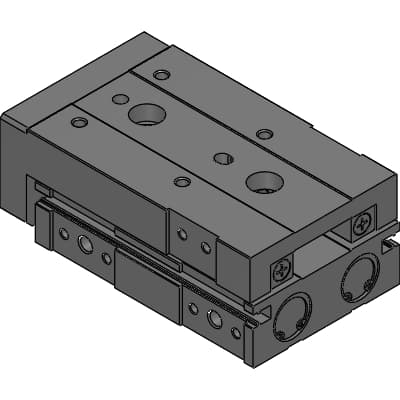

Product Model
LCV-20-10(0)
Selling Points
- 1High-Performance Operation: The LCV-20-10(0) operates at a maximum working pressure of 0.7 MPa and a minimum working pressure of 0.15 MPa.
- 2Versatile Bore Sizes: Available in bore sizes φ6 to φ25, accommodating various applications.
- 3Flexible Stroke Lengths: Offers standard stroke lengths from 10 to 150 mm, customizable to meet specific needs.
- 4Compressed Air Fluid: Utilizes compressed air as the working fluid for efficient operation.
- 5Durable Design: Equipped with a rubber cushion metal stopper for enhanced durability and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | LCV | Bore size | 20mm |
Stroke | 10mm | Stroke adjusting stopper | None |
Option | None | Option | None |
Stroke position | 0mm | Product information | Product information |
L1 | 109.0mm | L2 | 94.0mm |
X | 77.0mm | Y | 18.0mm |
Z | 0.0mm | N1 | 4pcs |
P1 | 50mm | N2 | 2pcs |
P2 | 45mm | HA | 35mm |
U | 14mm | V | 28mm |
Specifications may be subject to change without notice
