Product Model

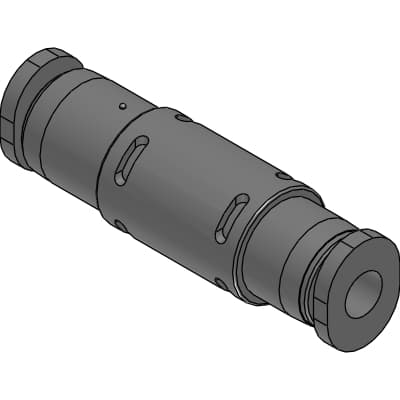

QEL-66P-S
Selling Points
- 1Compact and space-saving inline type with built-in φ6 push-in fittings.
- 2Ozone-resistant materials for degradation prevention.
- 3Atmospheric release type for efficient pressure management.
- 4Effective countermeasure against condensation due to adiabatic expansion.
- 5Suitable for high-speed driving of actuators with a clean and compact design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | QEL | Compatible Tube O.D. | 66P : φ6 plug |
Option | S : Atmosphere release | φD tube O.D. | φ6mm |
B | 47.5mm | L1 | 4.7mm |
L2 | 22.0mm | L3 | -mm |
φP1 | 11.0mm | φP2 | -mm |
φP3 | -mm | φP4 | -mm |
C | 11.8mm | H | 12mm |
E | -mm | X | 11.8mm |
Y | 9.8mm |
Specifications may be subject to change without notice
