CKD CorporationRegulators
Product Model

RB500-SSC4

Manufacturer

CKD Corporation

Category

Regulators

Product ID

50565

In Stock
Last updated: 2025/4/28
View Specifications

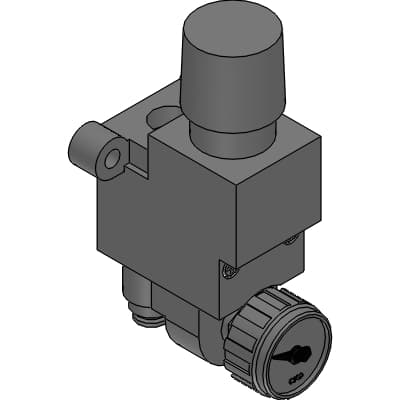

CKD Corporation RB500-SSC4

Selling Points

  • 1Compact and space-saving design for easy installation.
  • 2Compatible with compressed air and ozone-proof specifications.
  • 3Standard pressure gauge: 21 dia. 0 to 1.0MPa; low pressure gauge: 27 dia. 0 to 0.4MPa.
  • 4Push-in joint port sizes: 4 and 6 dia.
  • 5Integrated reverse flow function for reliable operation.
Product Details
RB500-SSC4
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
RB500
Connection direction IN
S : Straight
Connection direction OUT
S : Straight
Port size
C4 : φ 4
Panel mount
Blank : Without nut
Pressure range
Blank : 0.05 to 0.7MPa (pressure gauge: G29D-6-P10)
Relief
Blank : Relief type
Pressure gauge
Blank : With pressure gauge
Infotext
https://www.ckd.co.jp/kiki/en/product/detail/387/RB500%E3%83%BBMNRB500?t=list&cid=69&sid=0&p=2

Specifications may be subject to change without notice
