Product Model

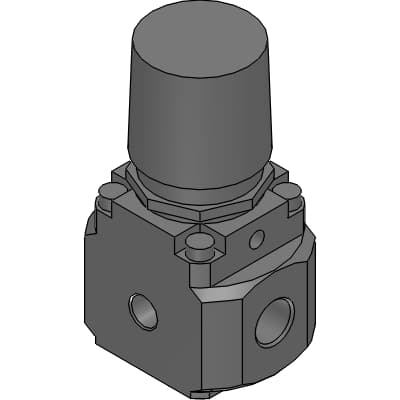

RC2000-8-P90
Selling Points
- 1Durable and oil-prohibited for clean air and N2 pressure control.
- 2Ensures gas contact parts are thoroughly cleaned in clean rooms.
- 3Achieves 0.8 m3/min. with a compact face-to-face distance of just 50 mm.
- 4Safely reverses secondary pressure to the primary side when primary pressure is exhausted.
- 5Available as a customized product to meet specific application needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | RC2000 | Port size | 8 : Rc1/4 |
Pressure range | Blank : 0.05 to 0.7MPa | Relief mechanism | Blank : Relief type |
Attachment gauge type | Blank : Without attachment | Attachment bracket type | Blank : Without attachment |
Attachment fitting | Blank : Without attachment | Clean room specifications | P90 : Stainless steel material used Oil free |
Infotext | https://www.ckd.co.jp/kiki/en/product/detail/375/RC2000?t=list&cid=69&sid=0&p=3 | A | Rc1/4mm |
B | 50.000mm | C | 25.500mm |
D | 27.000mm | E | 95.000mm |
F | 21.000mm |
Specifications may be subject to change without notice
