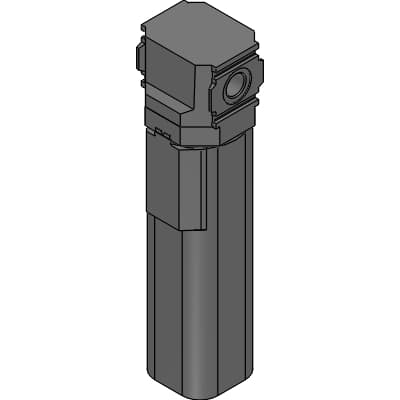

Product Model
SD301E-05-W
Selling Points
- 1Freon-free design, ozone-safe and environmentally friendly.
- 2Electricity-free operation, reducing energy consumption.
- 3High polymer membrane technology for efficient air drying.
- 4Compact design with low purge rate (10%), ideal for space-saving applications.
- 5Suitable for various industries requiring precise air quality control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | SD301E | Inlet air pressure | 05 : 0.5 MPa |
Option : Bracket | Blank : None | Option : Common exhaust | Blank : None |
Option : Reversed inlet and outlet | Blank : None | Infotext | https://www.ckd.co.jp/kiki/en/product/detail/84/SD%E3%83%BBSU%E3%83%BBSDM?t=list&cid=75&sid=0 |
A | 63mm | B | 63mm |
C | 175mm | D | 67mm |
E | 45mm | F | 34.5mm |
G | 16.5mm |
Specifications may be subject to change without notice
