CKD CorporationFittings/tubes
Product Model

ZSP-E8

Manufacturer

CKD Corporation

Category

Fittings/tubes

Product ID

51504

In Stock
Last updated: 2025/4/29
View Specifications

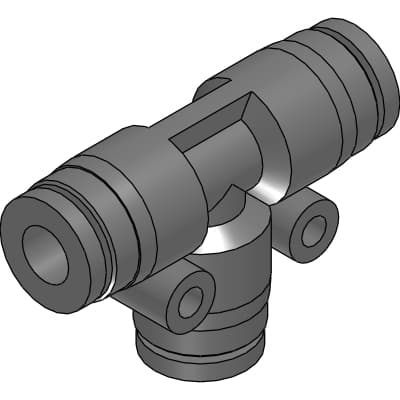

CKD Corporation ZSP-E8

Selling Points

  • 1Made from stainless steel (SUS303 or equivalent) for durability in corrosive atmospheres.
  • 2Available in various tube O.D. sizes and port sizes (M5, 1/8, 1/4, 3/8, 1/2) for versatile applications.
  • 3Compliant with the RoHS Directive, ensuring all substances harmful to the environment are eliminated.
  • 4Ideal for use in atmospheres susceptible to copper ions, providing long-lasting performance.
  • 5Perfect for pneumatic piping systems, offering a wide range of fittings for various industrial needs.
Product Details
ZSP-E8
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
ZSP-E8
Applicable tube outer diameter φ
8mm
C1
13.8mm
C2
15.0mm
B
18.1mm
L2
22.2mm
L3
44.4mm
E
3.2mm
N1
9.0mm
N2
18mm
L1
22.2mm
F
15.6mm
Effective cross section area
20.0mm^2
Weight
15.0g

Specifications may be subject to change without notice
