Product Model

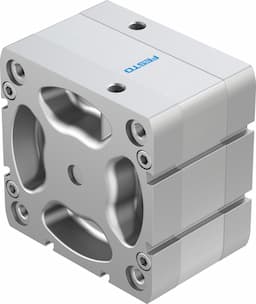

adn-100-10-i-p-a
Selling Points
- 1The ADN-100-10-I-P-A compact cylinder offers a 10 mm stroke and a 100 mm piston diameter, ensuring precise movement and control in various pneumatic applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear, enhancing overall performance.
- 3The cylinder can be mounted in any position, offering flexibility in installation and integration into different systems.
- 4The ADN-100-10-I-P-A conforms to ISO 21287, ensuring it meets international standards for pneumatic cylinders.
- 5Featuring a female thread at the piston rod end, this cylinder is compatible with proximity switches for precise position detection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 100 mm |
Piston rod thread | M12 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | Internal thread | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 2.5J |
Theoretical force at 6 bar, retracting | 4524N | Theoretical force at 6 bar, advancing | 4712N |
Moving mass | 477g | Product weight | 1697g |
Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Flange screws material | Steel |
Cover material | Die-cast aluminum, coated | Seals material | TPE-U(PUR) |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 536384 |
Specifications may be subject to change without notice
