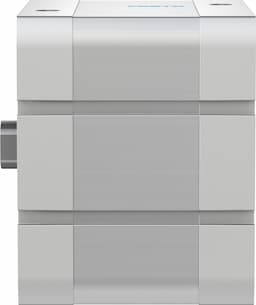

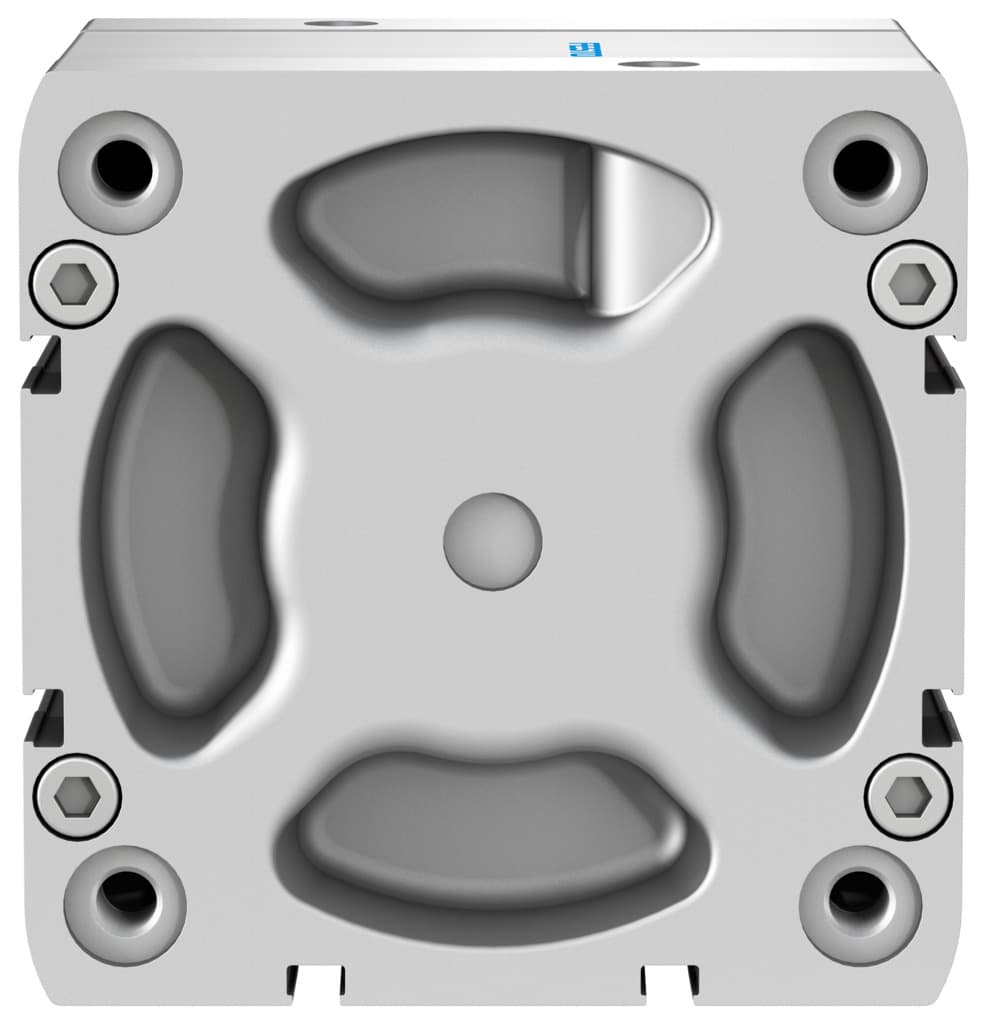

Festo ADN-100-25-I-PPS-A Compact Cylinder - High-Quality Pneumatic Solution

Selling Points

1Compact Design: The ADN-100-25-I-PPS-A is designed for space-saving applications with a compact cylinder style.
2Self-Adjusting Cushioning: Equipped with self-adjusting pneumatic end-position cushioning for smooth operation.
3Double Acting: Suitable for double-acting applications, providing precise control and movement.
4High-Quality Materials: Constructed with high-alloyed steel piston rod and TPE-U(PUR) seals for durability.
5ISO Compliance: Compliant with ISO 21287 standards, ensuring reliability and performance in various industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	25mm	Piston diameter	100 mm
Piston rod thread	M12	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	Internal thread	Position sensing	For proximity sensor
Symbol	00991217	Variants	Piston rod at one end
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	2.5J
Cushioning length	10mm	Theoretical force at 6 bar, retracting	4524N
Theoretical force at 6 bar, advancing	4712N	Moving mass	545g
Product weight	1875g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Flange screws material	Steel	Cover material	Die-cast aluminum, coated
Seals material	TPE-U(PUR)	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	577193

Specifications may be subject to change without notice
