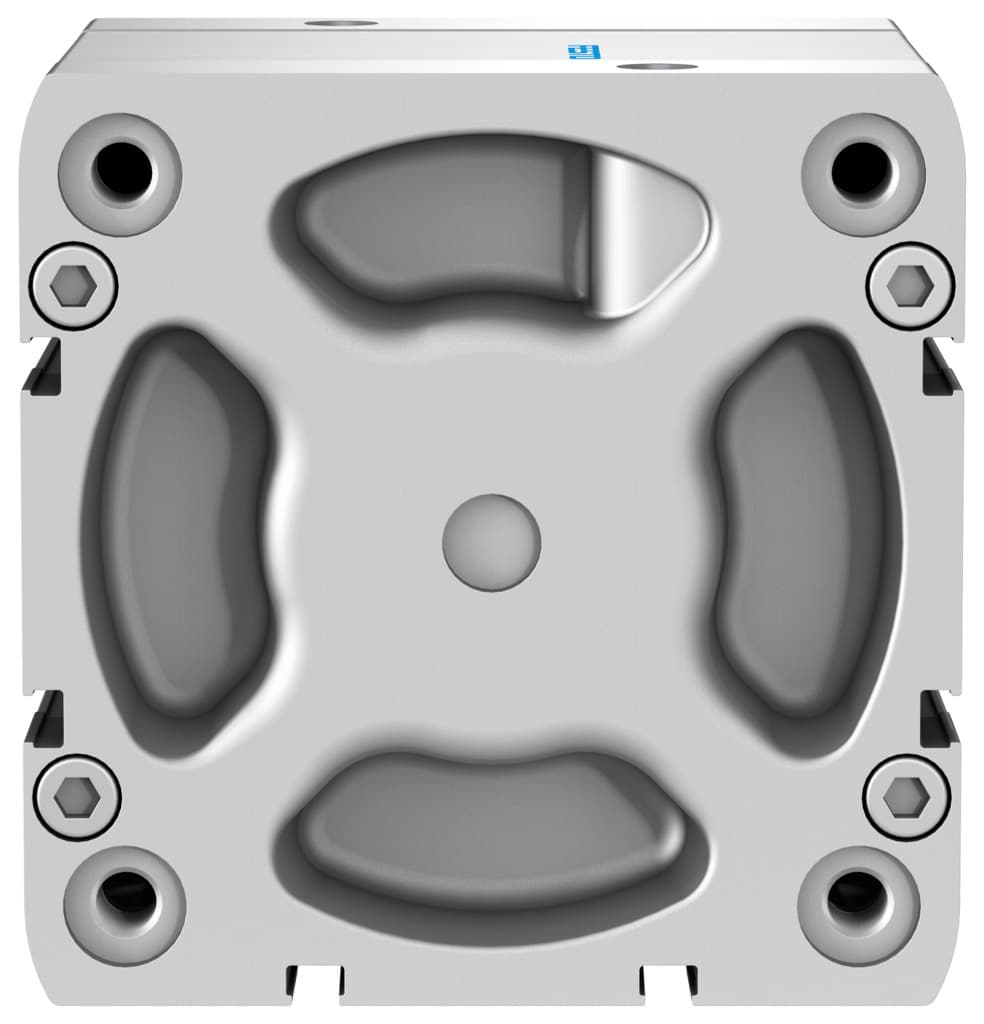

Festo ADN-100-30-I-PPS-A Compact Cylinder for Precision Applications

Selling Points

1Compact Design: Up to 50% less installation space than comparable standards-based cylinders.
2High Variance Cushioning: Self-adjusting pneumatic end-position cushioning for optimal performance.
3Position Sensing Capable: Designed for position sensing with proximity sensors.
4Wide Application Range: Suitable for various manufacturing applications, including lithium-ion battery production.
5Long Service Life: Good running performance and long service life due to robust construction.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	30mm	Piston diameter	100 mm
Piston rod thread	M12	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	Internal thread	Position sensing	For proximity sensor
Symbol	00991217	Variants	Piston rod at one end
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	2.5J
Cushioning length	10mm	Theoretical force at 6 bar, retracting	4524N
Theoretical force at 6 bar, advancing	4712N	Moving mass	557g
Product weight	1924g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Flange screws material	Steel	Cover material	Die-cast aluminum, coated
Seals material	TPE-U(PUR)	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	577194

Specifications may be subject to change without notice
