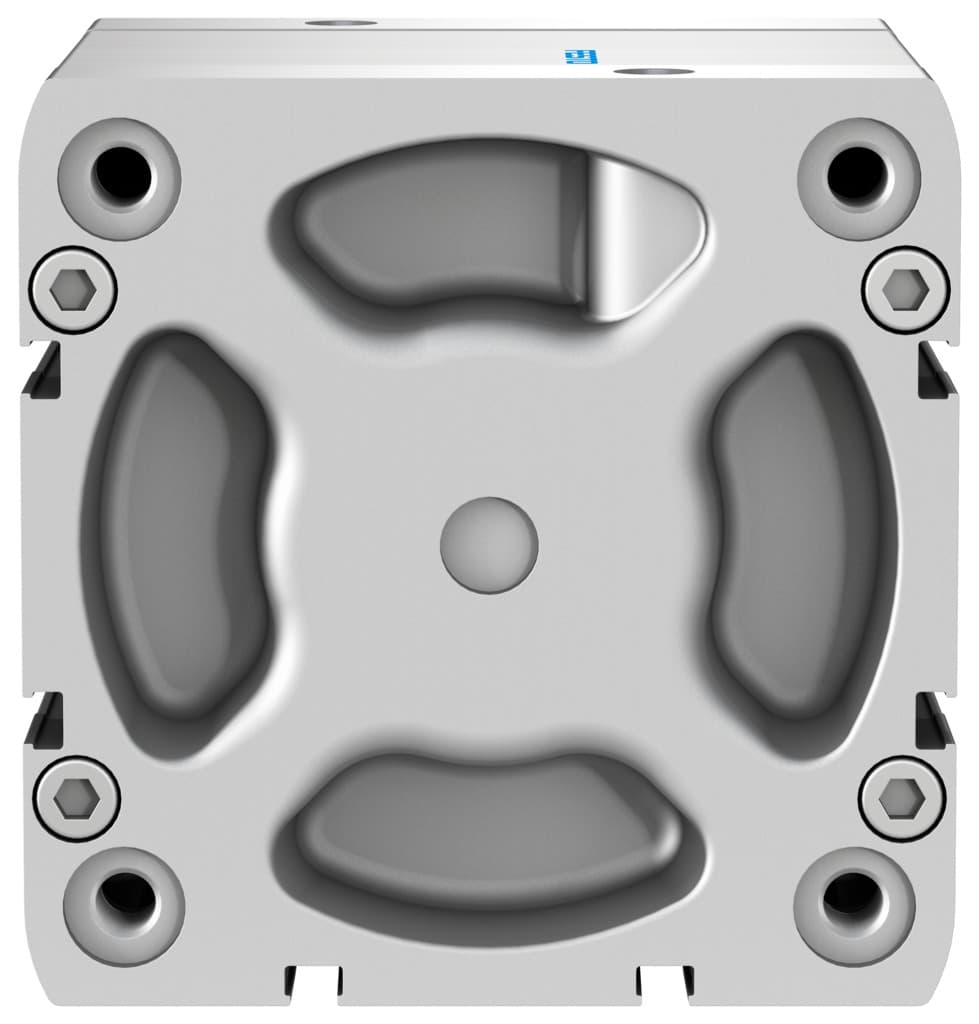

Festo ADN-100-40-A-PPS-A Compact Pneumatic Cylinder

Selling Points

1Compact Design: 40mm stroke and 100mm piston diameter for precise control.
2Self-Adjusting Cushioning: Ensures smooth operation with self-adjusting pneumatic end-position cushioning.
3High-Pressure Compatibility: Operates at 0.1 MPa to 1 MPa, suitable for various industrial applications.
4Robust Construction: Made from high-alloy steel piston rod and smooth-anodized aluminum alloy barrel.
5Versatile Mounting Options: Can be mounted via through-hole or female thread, offering flexibility in installation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	40mm	Piston diameter	100 mm
Piston rod thread	M16x1.5	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	External thread	Position sensing	For proximity sensor
Symbol	00991217	Variants	Piston rod at one end
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	2.5J
Cushioning length	10mm	Theoretical force at 6 bar, retracting	4524N
Theoretical force at 6 bar, advancing	4712N	Moving mass	719g
Product weight	2159g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Flange screws material	Steel	Cover material	Die-cast aluminum, coated
Seals material	TPE-U(PUR)	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	577204
