Product Model

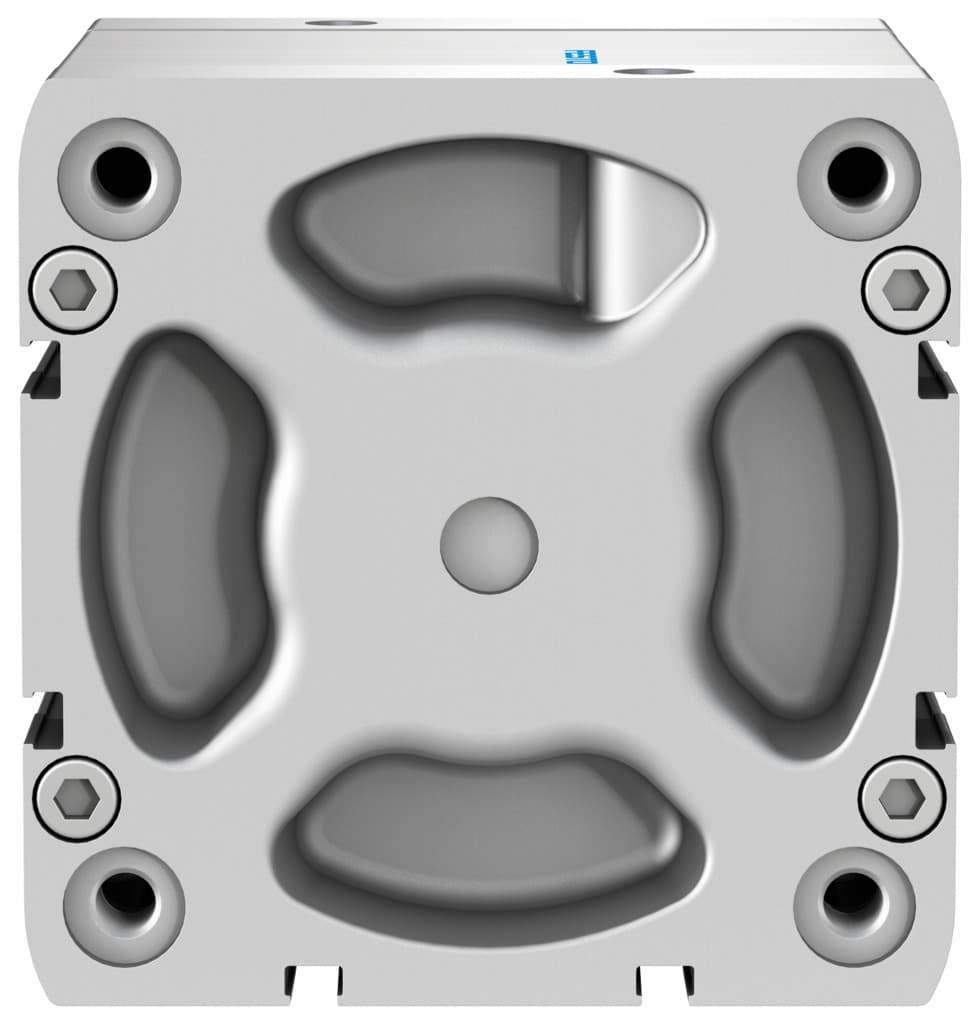

adn-100-40-i-pps-a
Selling Points
- 1Compact design for space-efficient applications.
- 2ISO 21287 compliant for high precision and reliability.
- 3100x40mm stroke for versatile motion control.
- 4Self-adjusting pneumatic end-position cushioning for smooth operation.
- 5Female thread piston rod for easy integration with Festo systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 40mm | Piston diameter | 100 mm |
Piston rod thread | M12 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | Internal thread | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 2.5J |
Cushioning length | 10mm | Theoretical force at 6 bar, retracting | 4524N |
Theoretical force at 6 bar, advancing | 4712N | Moving mass | 582g |
Product weight | 2023g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Die-cast aluminum, coated |
Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 577195 |
Specifications may be subject to change without notice
