Product Model

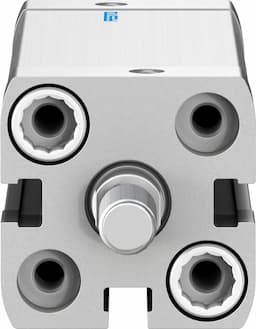

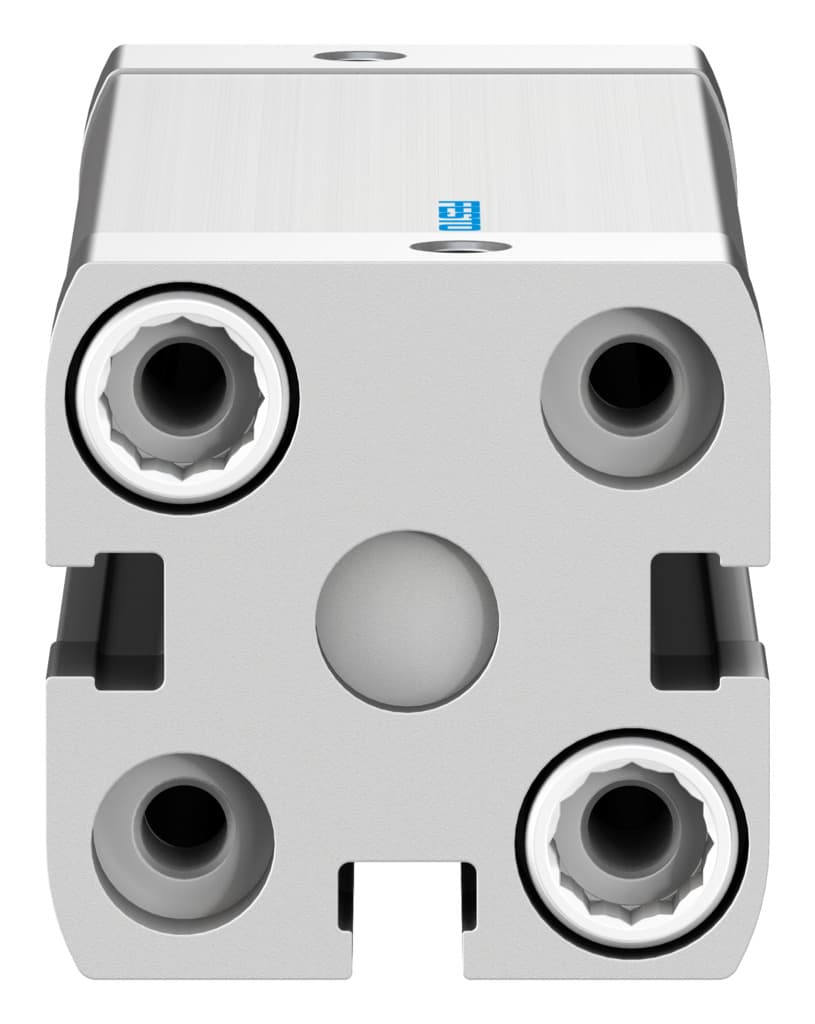

adn-20-70-a-pps-a
Selling Points
- 1Compact design, up to 50% smaller than standard cylinders.
- 2Self-adjusting pneumatic end-position cushioning for smooth operation.
- 3Conforms to ISO 21287 standard for reliability and precision.
- 4Double-acting operation with dual connection ports for advancing and retracting.
- 5Easy mounting with optional through-hole or female thread mounting options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 70mm | Piston diameter | 20 mm |
Piston rod thread | M8 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | External thread | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.2J | Cushioning length | 3mm |
Theoretical force at 6 bar, retracting | 141N | Theoretical force at 6 bar, advancing | 188N |
Moving mass | 77g | Product weight | 282g |
Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | M5 |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 593451 |
Specifications may be subject to change without notice
