Product Model

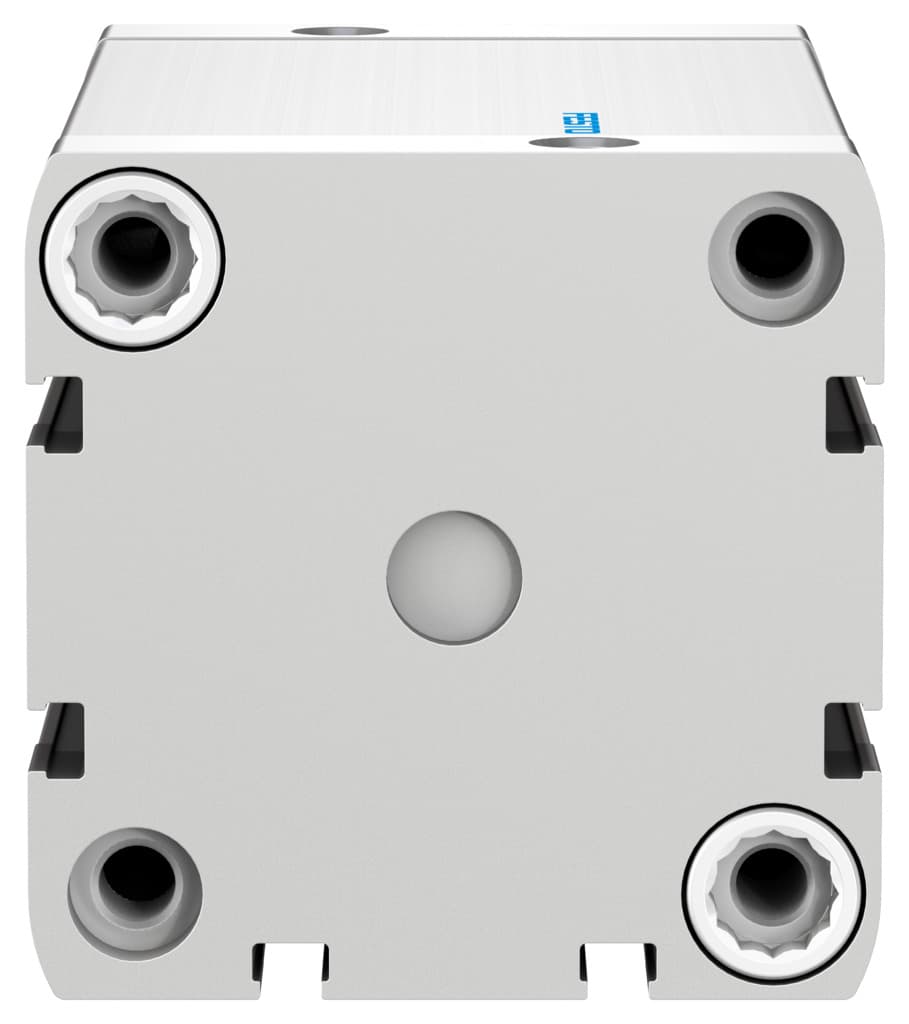

adn-2 1/2"-3"-i-p-a
Selling Points
- 1Precision Automation: Designed for precise movement in manufacturing, robotics, and process automation.
- 2Double-Acting Operation: Enables both extension and retraction strokes with compressed air.
- 3Elastic Cushioning: Features elastic cushioning rings/plates at both ends for smooth operation.
- 4Versatile Mounting: Optional mounting positions with through-hole or female thread options.
- 5Compliant Standards: Meets ISO 21287 and VDMA24364-B1/B2-L standards for reliability and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 76.2mm | Piston diameter | 2 1/2" |
Piston rod thread | 3/8-24 UNF-2B | Based on norm | ISO 21287 |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | Internal thread |
Structural design | Piston Piston rod Profile barrel | Position sensing | For proximity sensor |
Variants | Piston rod at one end | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1.30023J |
Theoretical force at 6 bar, retracting | 1750.002N | Theoretical force at 6 bar, advancing | 1870.002N |
Moving mass at 0?mm stroke | 180.646g | Additional moving mass per 10?mm stroke | 59.223g |
Basic weight with 0?mm stroke | 724.598g | Additional weight per 10?mm stroke | 16.046g |
Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | 1/8 NPT |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Material of dynamic seals | TPE-U(PU) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 557153 |
Specifications may be subject to change without notice
