Product Model

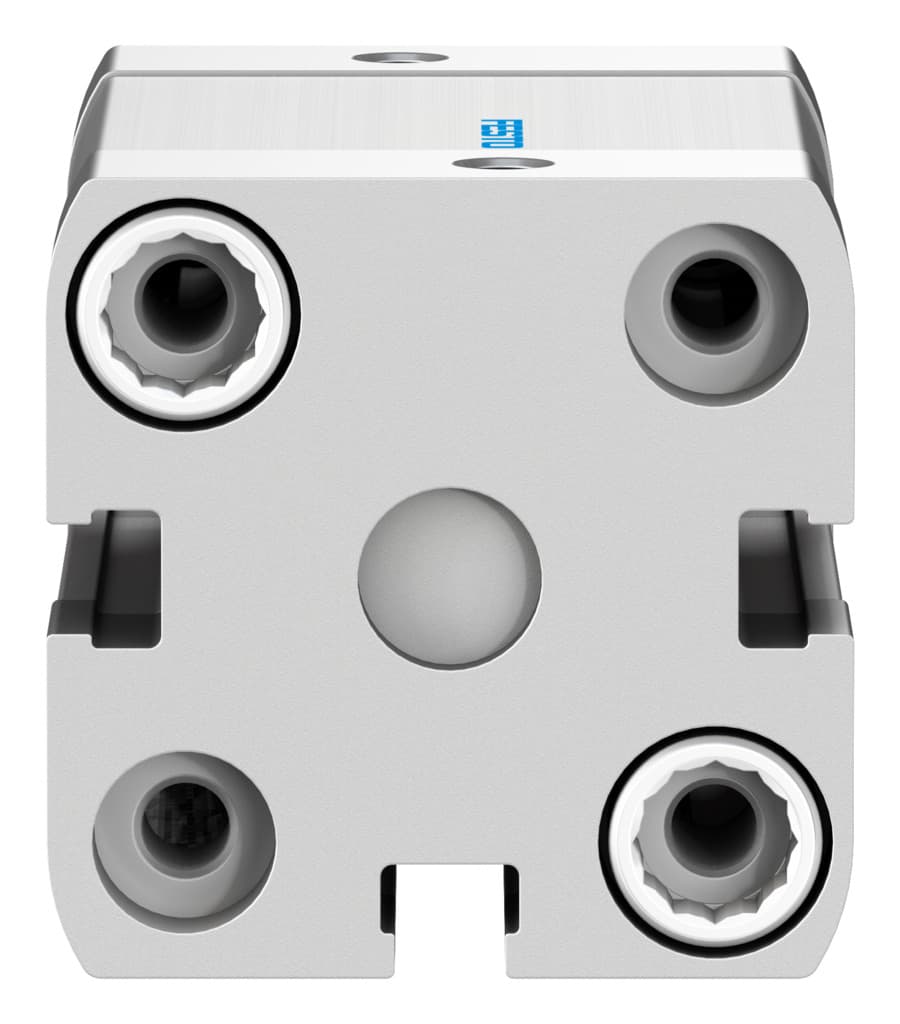

adn-25-20-i-pps-a
Selling Points
- 1Compact Design: Ideal for space-constrained applications with a stroke length of 20 mm and piston diameter of 25 mm.
- 2Self-Adjusting Cushioning: Ensures smooth operation with self-adjusting pneumatic end-position cushioning.
- 3Versatile Mounting: Can be mounted with through-hole, female thread, or accessories for flexible installation options.
- 4High Corrosion Resistance: Meets CRC 2 standards for moderate corrosion stress and is RoHS compliant.
- 5Reliable Operation: Operates at pressures from 1.5 to 10 bar with double-acting mode and compressed air to ISO 8573-1:2010 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 20mm | Piston diameter | 25 mm |
Piston rod thread | M6 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | Internal thread | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Piston rod at one end |
Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.3J | Cushioning length | 3.5mm |
Theoretical force at 6 bar, retracting | 247N | Theoretical force at 6 bar, advancing | 295N |
Moving mass | 43g | Product weight | 224g |
Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Flange screws material | Steel |
Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 577176 |
Specifications may be subject to change without notice
