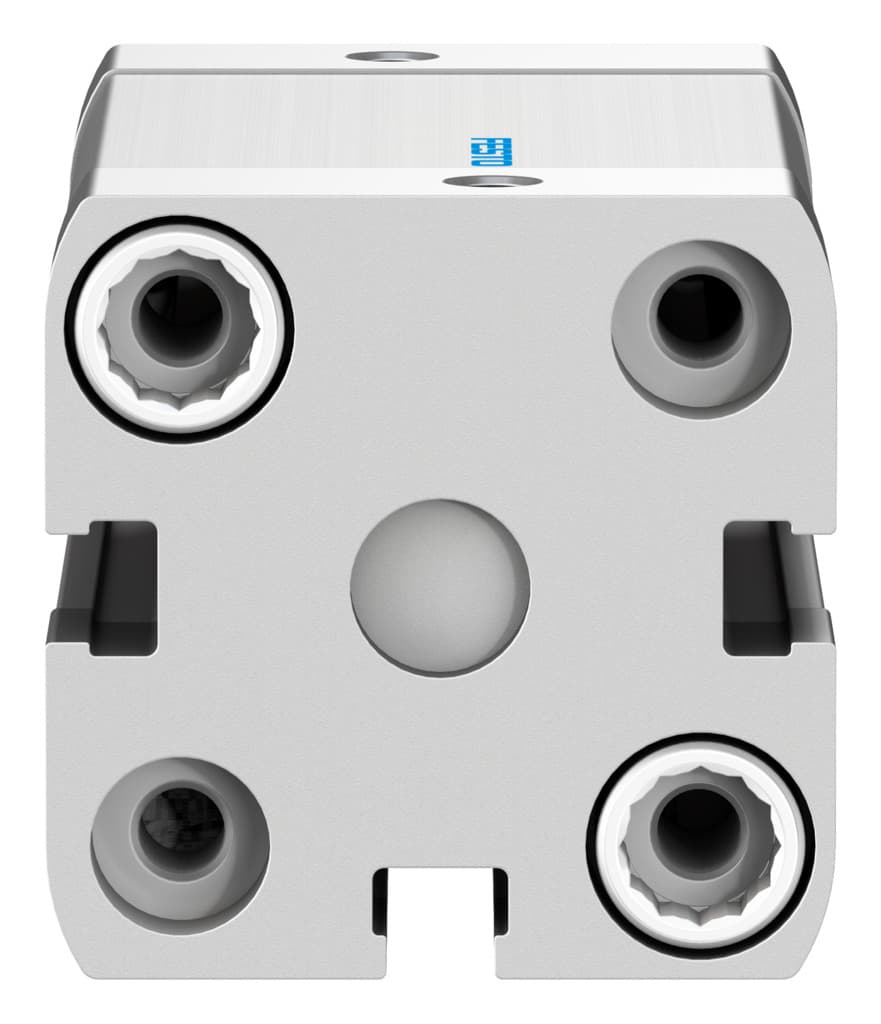

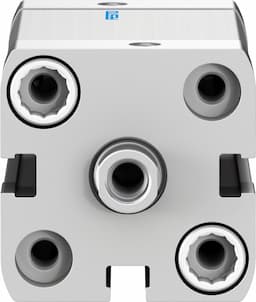

Festo ADN-25-35-I-P-A Compact Pneumatic Cylinder

Selling Points

1High Precision Stroke: 35 mm stroke with 25 mm piston diameter for precise movement.
2Elastic Cushioning: Equipped with elastic cushioning rings/plates at both ends for smooth operation.
3Versatile Mounting: Optional mounting positions via through-hole or female thread for flexible installation.
4Corrosion Resistance: Moderate corrosion resistance class CRC 2, suitable for various industrial environments.
5Robust Construction: Made from high-alloy steel piston rod and anodised wrought aluminium alloy cover for durability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	35mm	Piston diameter	25 mm
Piston rod thread	M6	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	Internal thread	Position sensing	For proximity sensor
Symbol	00991217	Variants	Piston rod at one end
Operating pressure	0.6bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-20°C 80°C
Impact energy in the end positions	0.3J	Theoretical force at 6 bar, retracting	247N
Theoretical force at 6 bar, advancing	295N	Moving mass	54g
Product weight	262g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	M5	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
Piston rod material	High-alloy steel	Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized
Manufacturer ID	608920
