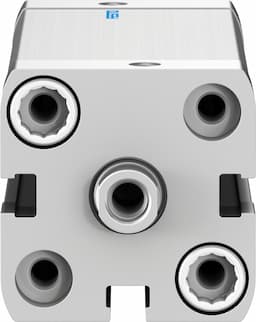

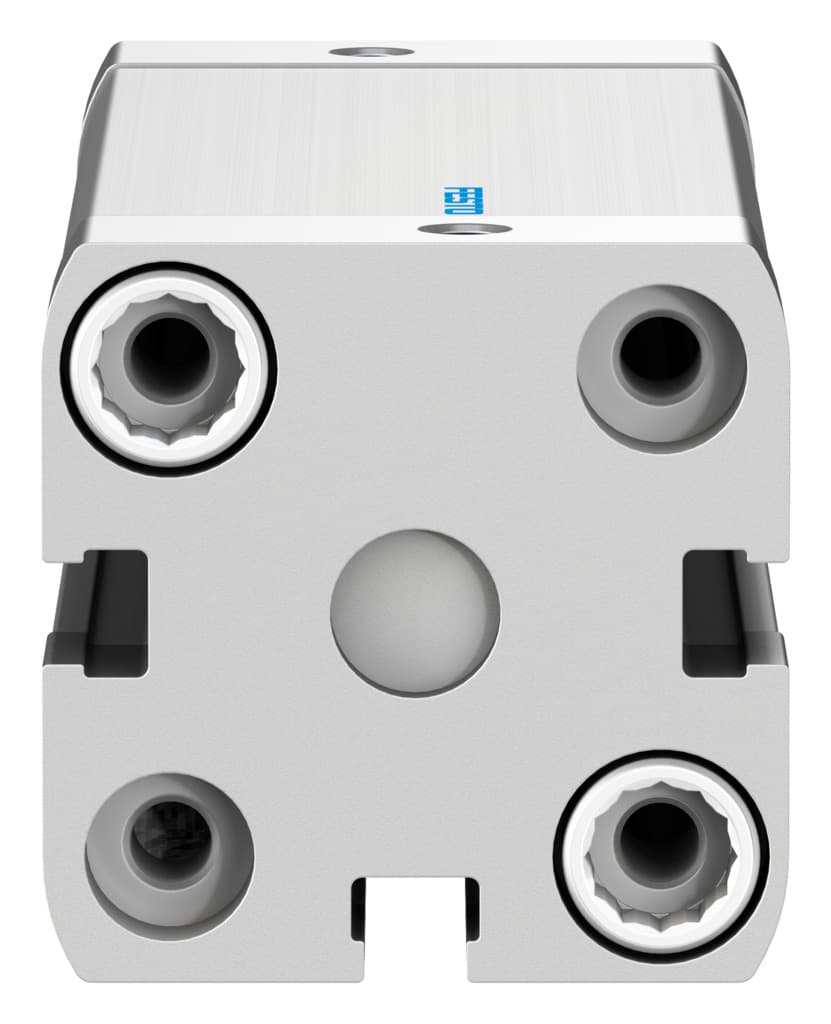

Festo ADN-25-80-I-P-A Compact Cylinder for Precision Applications

Selling Points

1Ideal for space-constrained applications with a stroke of 80 mm and piston diameter of 25 mm.
2Equipped with elastic cushioning rings/pads at both ends for smooth operation and reduced wear.
3Piston rod end features an internal thread, ensuring secure connection to pneumatic systems.
4Capable of both advancing and retracting forces, making it versatile for multiple tasks.
5Meets ISO 21287 and ISO 8573-1:2010 standards, ensuring high-quality performance and reliability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	80mm	Piston diameter	25 mm
Piston rod thread	M6	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	Internal thread	Position sensing	For proximity sensor
Symbol	00991217	Variants	Piston rod at one end
Operating pressure	0.6bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-20°C 80°C
Impact energy in the end positions	0.3J	Theoretical force at 6 bar, retracting	247N
Theoretical force at 6 bar, advancing	295N	Moving mass	82g
Product weight	379g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	M5	Note on materials	RoHS-compliant
Flange screws material	Steel	Cover material	Wrought aluminum alloy, anodized
Seals material	TPE-U(PUR)	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	578450

Specifications may be subject to change without notice
