Product Model

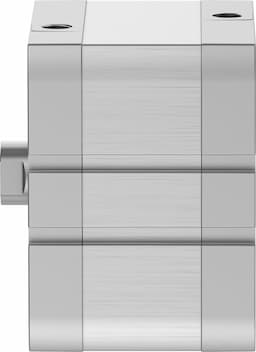

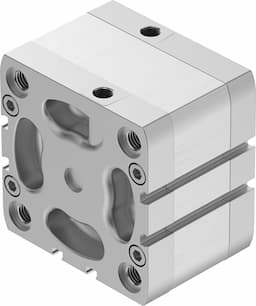

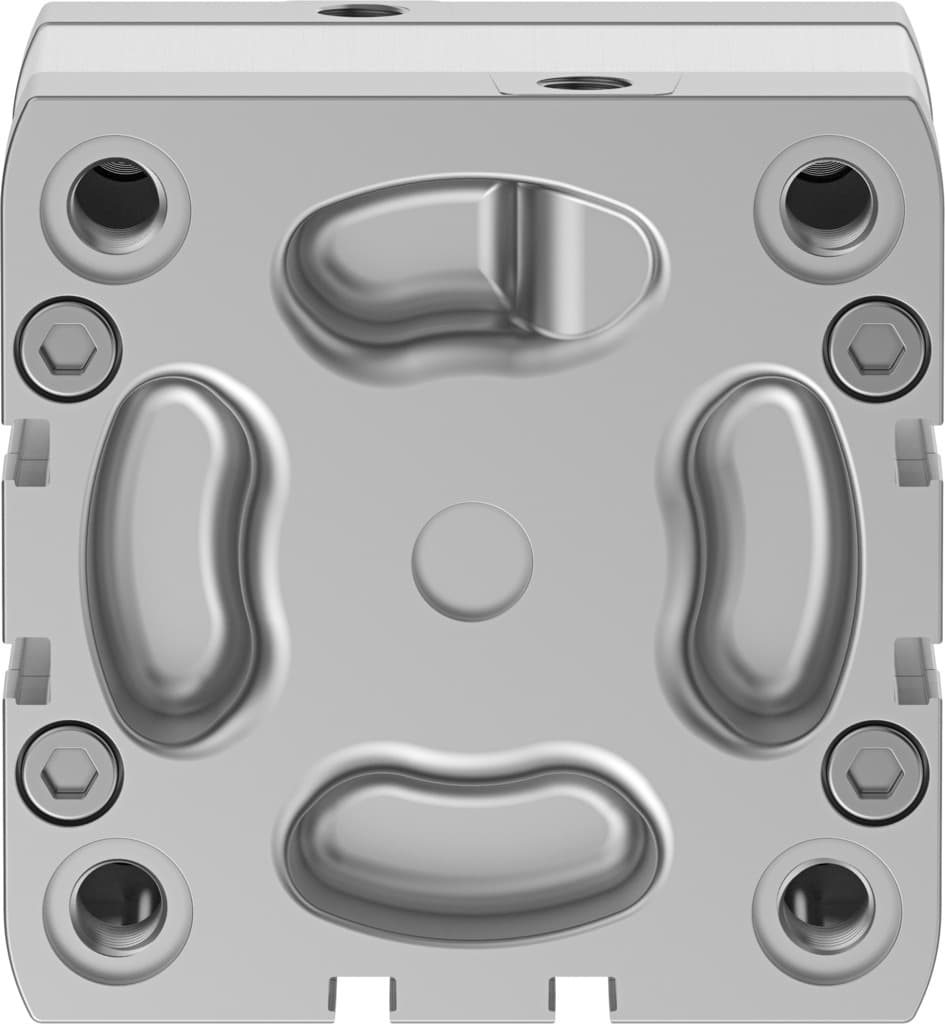

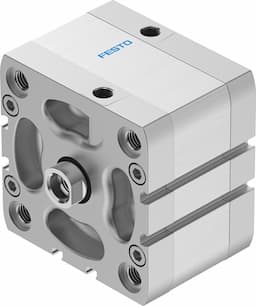

adn-80-15-i-pps-a
Selling Points
- 1Compact Design: The ADN-80-15-I-PPS-A features a compact design with a stroke of 15 mm and a piston diameter of 80 mm.
- 2Self-Adjusting Cushioning: Equipped with self-adjusting pneumatic end-position cushioning for smooth operation and reduced wear.
- 3Double-Acting Operation: Designed for double-acting operation, allowing for both extension and retraction strokes.
- 4ISO 21287 Compliance: Conforms to the ISO 21287 standard, ensuring high-quality and reliable performance.
- 5Versatile Mounting Options: Offers flexible mounting options via female thread or through-hole, making it adaptable to various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 80 mm |
Piston rod thread | M12 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Conforms to standard | ISO 21287 |
Piston rod end | Internal thread | Position sensing | For proximity sensor |
Symbol | 00992970 | Variants | Piston rod at one end |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 8J |
Cushioning length | 7.5mm | Theoretical force at 6 bar, retracting | 2827N |
Theoretical force at 6 bar, advancing | 3016N | Moving mass | 361g |
Product weight | 1153g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Die-cast aluminum, coated |
Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 572719 |
Specifications may be subject to change without notice
