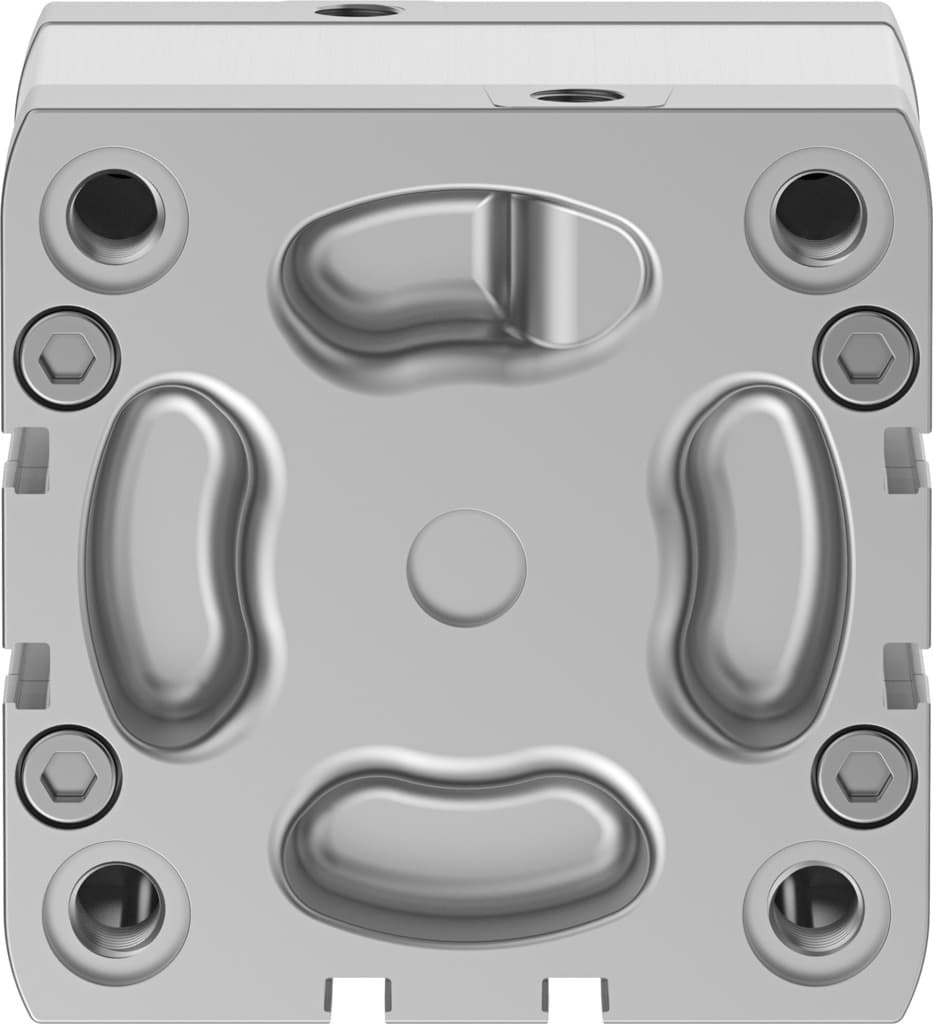

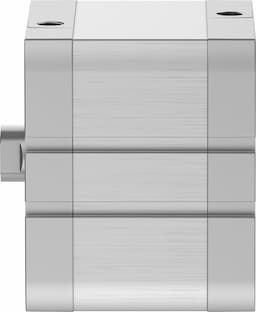

Festo ADN-80-25-I-PPS-A Compact Cylinder - High Precision and Durability

Selling Points

1Self-Adjusting Pneumatic End-Position Cushioning: Ensures smooth operation and reduces wear on the cylinder.
2High-Alloy Steel Piston Rod: Provides exceptional strength and corrosion resistance.
3Compliance with ISO 21287: Meets international standards for pneumatic cylinders.
4Double-Acting Operation: Suitable for applications requiring simultaneous extension and retraction.
5Wide Operating Pressure Range: Operates effectively between 1 to 10 bar, ensuring versatility in various applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	25mm	Piston diameter	80 mm
Piston rod thread	M12	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Conforms to standard	ISO 21287
Piston rod end	Internal thread	Position sensing	For proximity sensor
Symbol	00992970	Variants	Piston rod at one end
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	8J
Cushioning length	7.5mm	Theoretical force at 6 bar, retracting	2827N
Theoretical force at 6 bar, advancing	3016N	Moving mass	386g
Product weight	1232g	Type of mounting	Optionally: With through-hole With internal thread With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Flange screws material	Steel	Cover material	Die-cast aluminum, coated
Seals material	TPE-U(PUR)	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	572721

Specifications may be subject to change without notice
