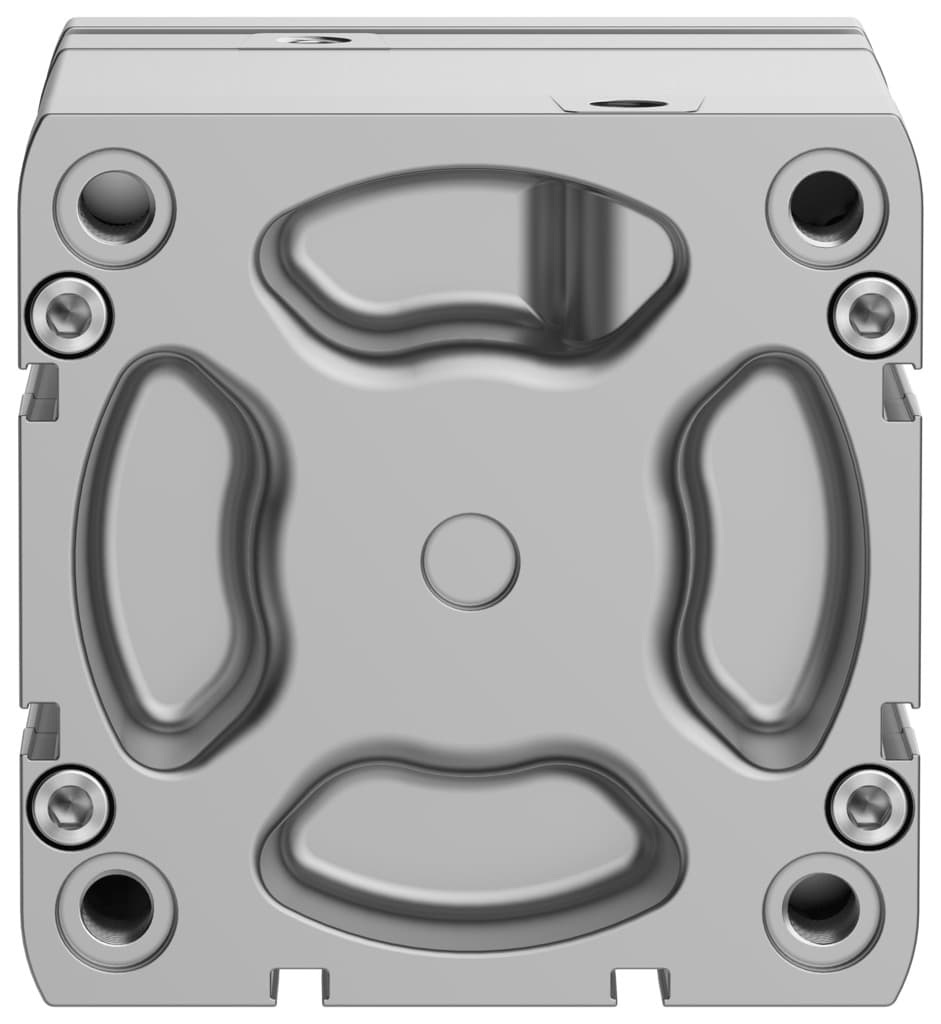

Festo ADNGF-100-40-PPS-A Compact Cylinder for Precision Applications

Selling Points

1High Load Capacity: Designed with guide rods and yoke plates for increased load capacity.
2Self-Adjusting Cushioning: PPS cushioning ensures smooth operation and reduces wear.
3Versatile Mounting: Suitable for any assembly position, making it adaptable to various applications.
4ISO 21287 Compliant: Meets international standards for precision and reliability.
5Double-Acting Operation: Ideal for applications requiring both forward and reverse motion control.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	40mm	Piston diameter	100 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.4bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	2.5J
Cushioning length	10mm	Theoretical force at 6 bar, retracting	4524N
Theoretical force at 6 bar, advancing	4712N	Moving mass	1259g
Product weight	2692g	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Die-cast aluminum, coated	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	577229

Specifications may be subject to change without notice
