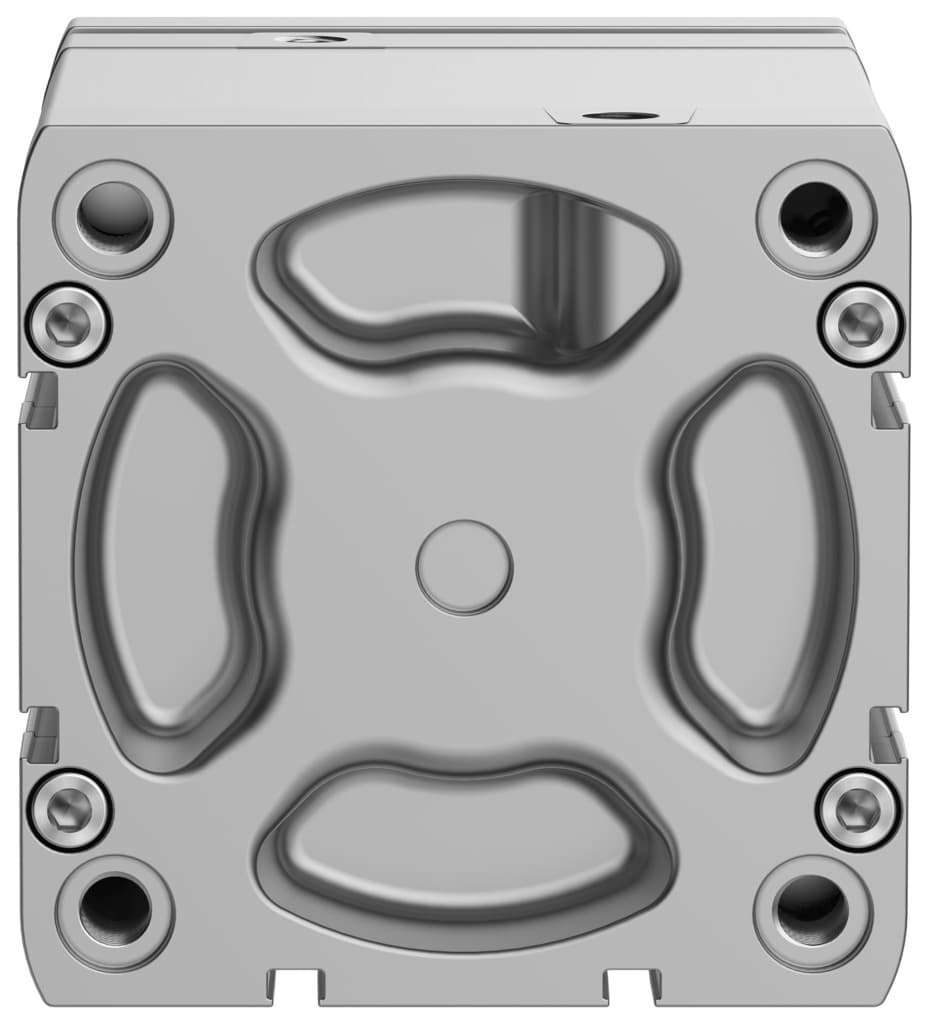

Product Model
adngf-100-60-pps-a
Selling Points
- 1Ideal for space-constrained applications with a stroke of 60 mm and piston diameter of 100 mm.
- 2Enhanced by guide rods and yoke plate, ensuring robust performance.
- 3PPS (Polyphenylsulfone) end-position cushioning for smooth operation.
- 4Meets international standards for pneumatic cylinders.
- 5Can be assembled in any position, offering flexibility in installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 60mm | Piston diameter | 100 mm |
Based on norm | ISO 21287 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.4bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 2.5J |
Cushioning length | 10mm | Theoretical force at 6 bar, retracting | 4524N |
Theoretical force at 6 bar, advancing | 4712N | Moving mass | 1344g |
Product weight | 2925g | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Flange screws material | Steel |
Cover material | Die-cast aluminum, coated | Seals material | TPE-U(PUR) |
End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 577231 |
Specifications may be subject to change without notice
