Product Model

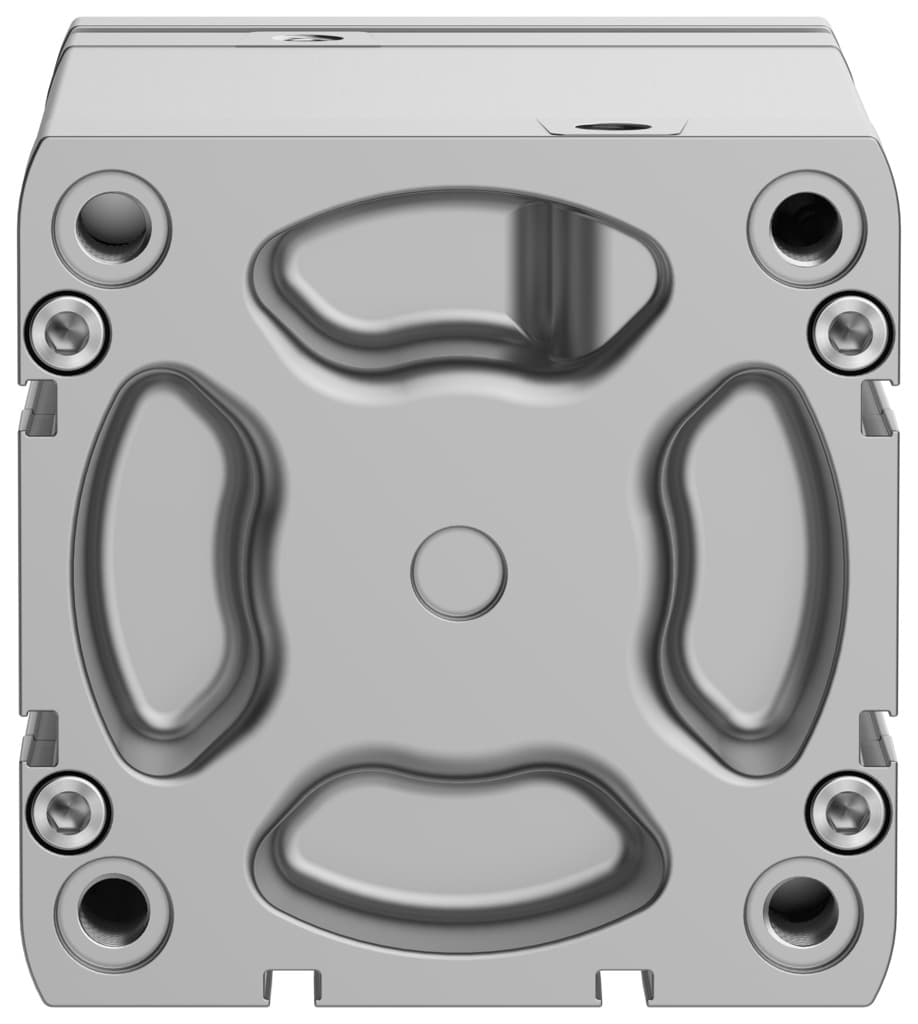

adngf-100-80-pps-a
Selling Points
- 1High Load Capacity: The ADNGF-100-80-PPS-A cylinder boasts a higher load capacity thanks to its guide rod and yoke plate design.
- 2Self-Adjusting Cushioning: Equipped with self-adjusting pneumatic end-position cushioning (PPS) for optimal performance and durability.
- 3Precision Engineering: Based on the ISO 21287 standard, ensuring precision and reliability in every application.
- 4Versatile Mounting: Can be mounted in any position, offering flexibility in installation and use.
- 5Compliant with ISO Standards: Meets the stringent requirements of ISO 21287, ensuring compatibility and reliability in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 80mm | Piston diameter | 100 mm |
Based on norm | ISO 21287 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.4bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 2.5J |
Cushioning length | 10mm | Theoretical force at 6 bar, retracting | 4524N |
Theoretical force at 6 bar, advancing | 4712N | Moving mass | 1429g |
Product weight | 3157g | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Flange screws material | Steel |
Cover material | Die-cast aluminum, coated | Seals material | TPE-U(PUR) |
End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 577232 |
Specifications may be subject to change without notice
