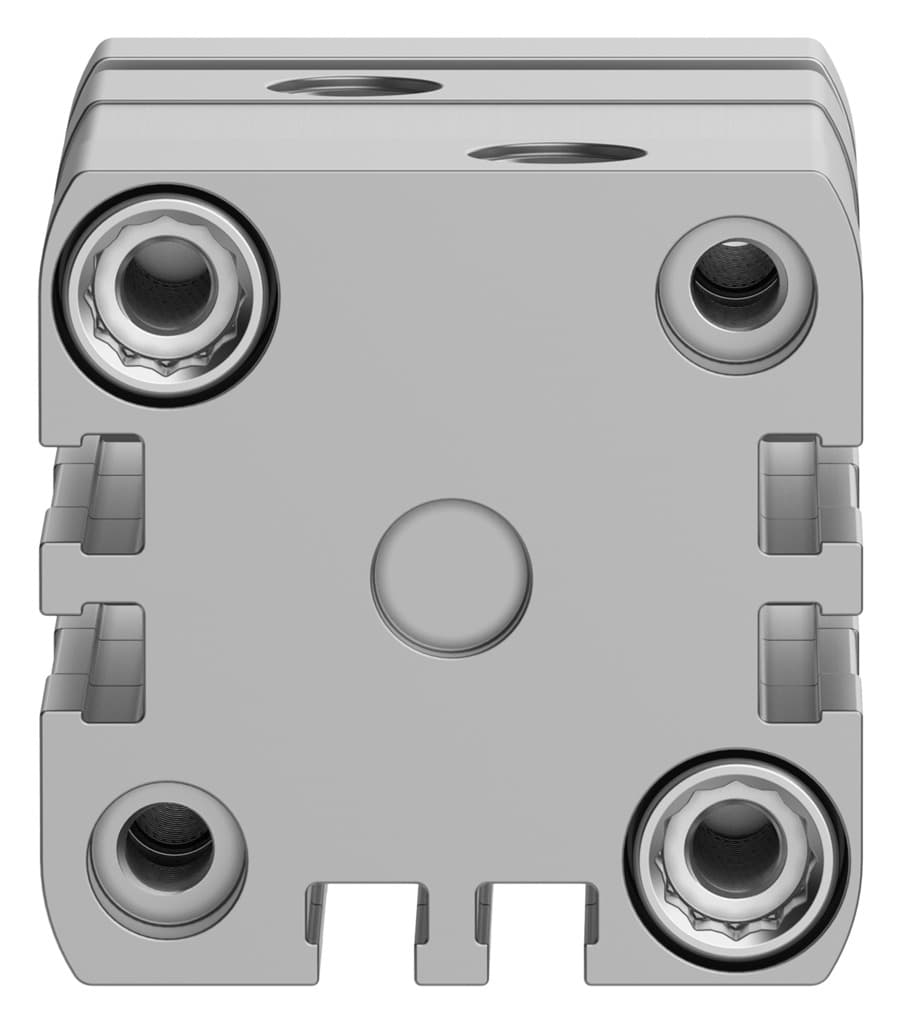

Product Model
adngf-1 1/4"- -
Selling Points
- 1Compact Design: Lightweight and space-efficient, perfect for tight spaces.
- 2Elastic Cushioning: Reduces impact energy and ensures smooth operation.
- 3Double-Acting Operation: Provides precise control in both extension and retraction.
- 4High Corrosion Resistance: Built with materials like anodised aluminium alloy and high-alloy steel.
- 5Versatile Mounting Options: Easy installation via through-hole, female thread, or with accessories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5.0038mm 299.9994mm | Piston diameter | 1 1/4" |
Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Variants | Through piston rod |
Protection against torsion/guide | Guide rod with yoke | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.39997J | Theoretical force at 6 bar, retracting | 415.001N |
Theoretical force at 6 bar, advancing | 415.001N 483.001N | Moving mass at 0?mm stroke | 122.444g |
Additional moving mass per 10?mm stroke | 38.131g | Basic weight with 0?mm stroke | 328.18g |
Additional weight per 10?mm stroke | 17.067g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | 1/8 NPT | Flange screws material | Steel |
Cover material | Wrought aluminum alloy, anodized | Seals material | NBR |
Material of dynamic seals | TPE-U(PU) | End plate material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 557231 |
Specifications may be subject to change without notice
