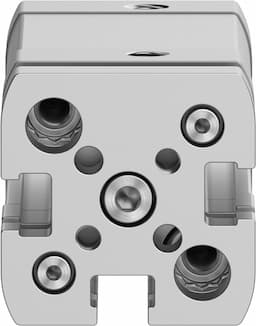

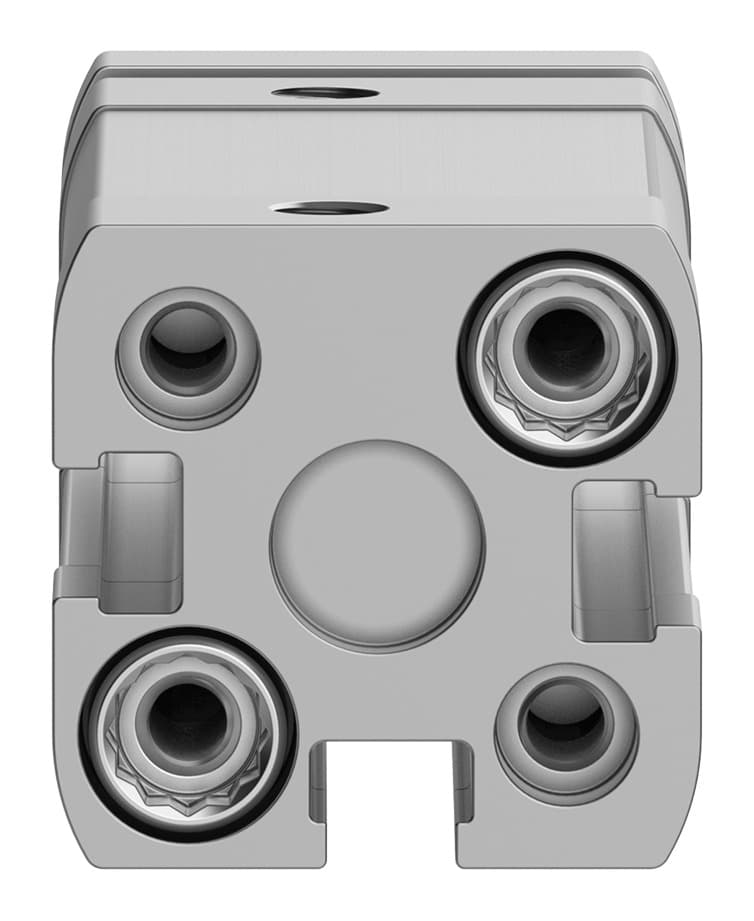

Product Model
adngf-1/2"-3/4"-p-a
Selling Points
- 1Ideal for space-constrained environments with a stroke of 0.75 inches.
- 2Equipped with elastic cushioning rings/plates at both ends for smooth operation.
- 3Capable of both extension and retraction strokes using compressed air.
- 4Features moderate corrosion resistance (CRC 2) for durability in various environments.
- 5Can be mounted in any position with optional through-hole or female thread mounting options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 19.05mm | Piston diameter | 1/2" |
Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.0705J |
Theoretical force at 6 bar, retracting | 50.999N | Theoretical force at 6 bar, advancing | 68N |
Moving mass at 0?mm stroke | 22.085g | Additional moving mass per 10?mm stroke | 14.062g |
Basic weight with 0?mm stroke | 90.323g | Additional weight per 10?mm stroke | 4.026g |
Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | 10-32 UNF-2B |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | NBR | Material of dynamic seals | TPE-U(PU) |
End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 557201 |
Specifications may be subject to change without notice
