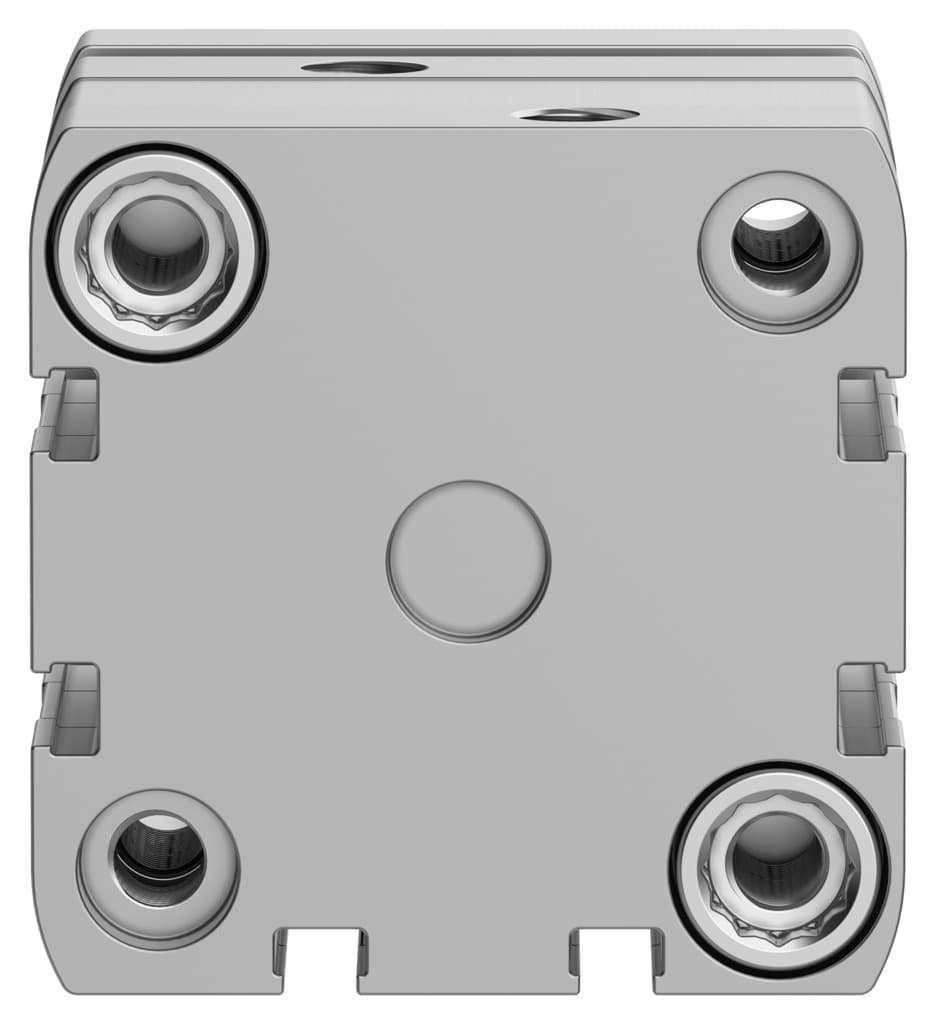

Product Model
adngf-2"- -
Selling Points
- 1Ideal for confined spaces with a small bore size of 2 inches.
- 2Absorbs residual energy at high speeds and machine cycles.
- 3Ensures excellent running performance and durability.
- 4Meets international standards for precision and reliability.
- 5Allows for both advancing and retracting the piston rod with compressed air.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5.0038mm 299.9994mm | Piston diameter | 2" |
Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Variants | Through piston rod |
Protection against torsion/guide | Guide rod with yoke | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 1.00059J | Theoretical force at 6 bar, retracting | 1057N |
Theoretical force at 6 bar, advancing | 1057N 1178.001N | Moving mass at 0?mm stroke | 288.036g |
Additional moving mass per 10?mm stroke | 64.241g | Basic weight with 0?mm stroke | 689.472g |
Additional weight per 10?mm stroke | 29.115g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | 1/8 NPT | Flange screws material | Steel |
Cover material | Wrought aluminum alloy, anodized | Seals material | NBR |
Material of dynamic seals | TPE-U(PU) | End plate material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 557251 |
Specifications may be subject to change without notice
