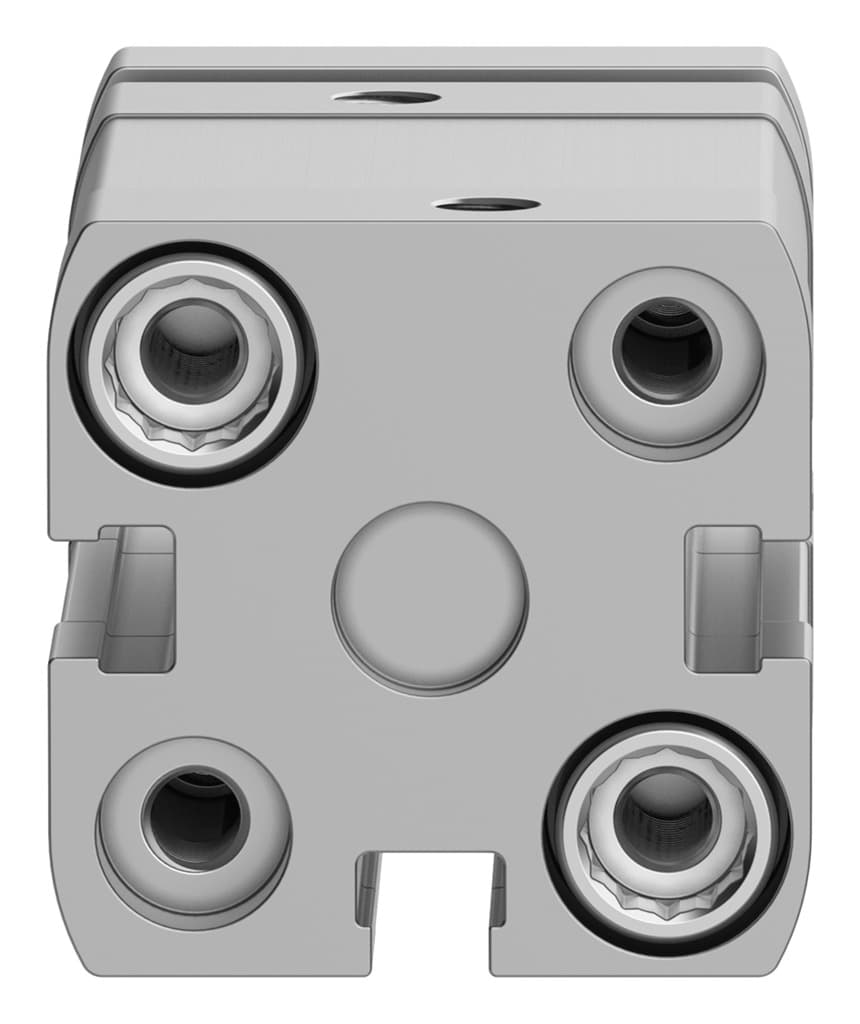

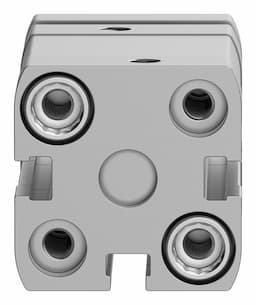

Festo ADNGF-20-15-PPS-A Compact Air Cylinder for Precision Applications

Selling Points

1Compact Design: Ideal for confined spaces with a stroke length of 15 mm and piston diameter of 20 mm.
2Self-Adjusting Cushioning: PPS: Self-adjusting pneumatic end-position cushioning for smooth operation.
3High Performance: Double-acting operation with theoretical forces up to 188 N at 6 bar.
4Versatile Mounting: Guide rod with yoke for easy mounting and positioning.
5Corrosion Resistance: Moderate corrosion stress classification (CRC 2) for reliable operation in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	15mm	Piston diameter	20 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.9bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	0.2J
Cushioning length	3mm	Theoretical force at 6 bar, retracting	141N
Theoretical force at 6 bar, advancing	188N	Moving mass	73g
Product weight	190g	Pneumatic connection	M5
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	577209

Specifications may be subject to change without notice
