Product Model

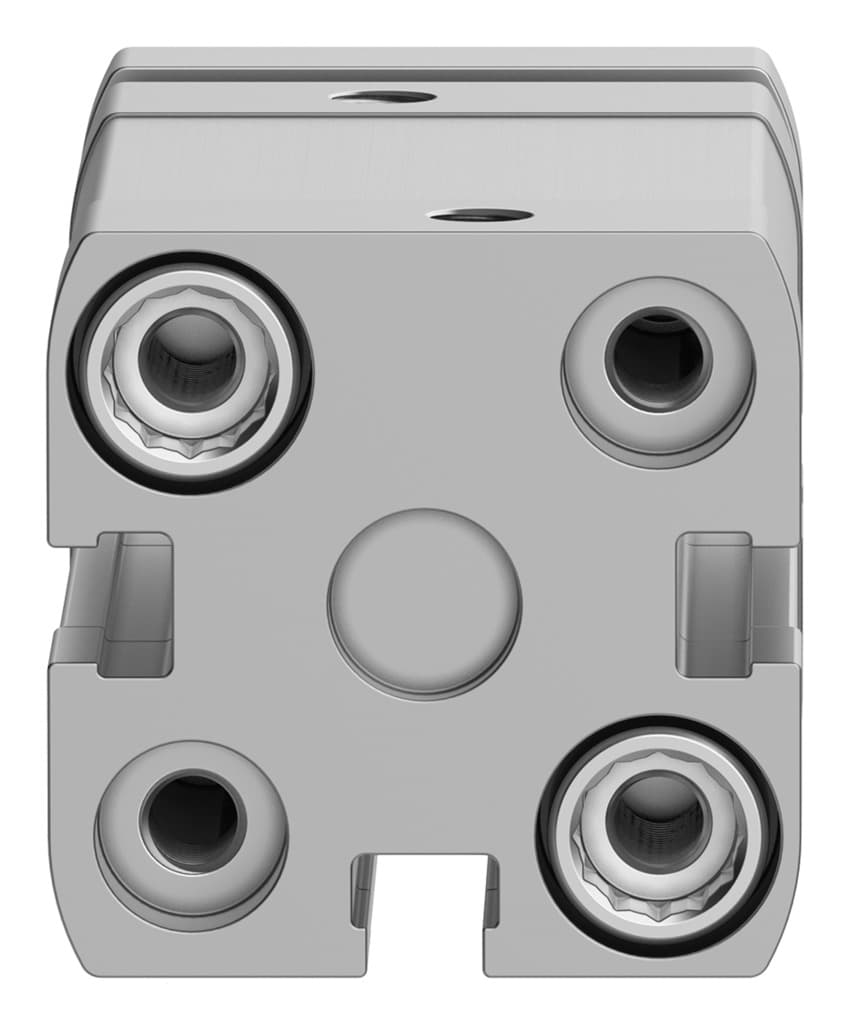

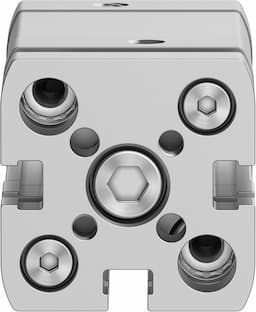

adngf-20-20-pps-a
Selling Points
- 1Compact Design: The Festo ADNGF-20-20-PPS-A is designed for space efficiency, making it perfect for applications where size is a constraint.
- 2High Precision: With a stroke of 20mm and a piston diameter of 20mm, this cylinder offers precise control over movements.
- 3Self-Adjusting Cushioning: The PPS (Pneumatic Positioning System) provides self-adjusting pneumatic end-position cushioning for smooth operation.
- 4ISO 21287 Compliance: Meets the ISO 21287 standard for pneumatic cylinders, ensuring high-quality performance and reliability.
- 5Durable Construction: Built with high alloy steel for the piston rod and wrought aluminum alloy for the cylinder barrel, ensuring long-lasting durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 20mm | Piston diameter | 20 mm |
Based on norm | ISO 21287 | Cushioning | Self-adjusting pneumatic end-position cushioning |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1.9bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
Cushioning length | 3mm | Theoretical force at 6 bar, retracting | 141N |
Theoretical force at 6 bar, advancing | 188N | Moving mass | 78g |
Product weight | 203g | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Flange screws material | Steel |
Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 577210 |
Specifications may be subject to change without notice
