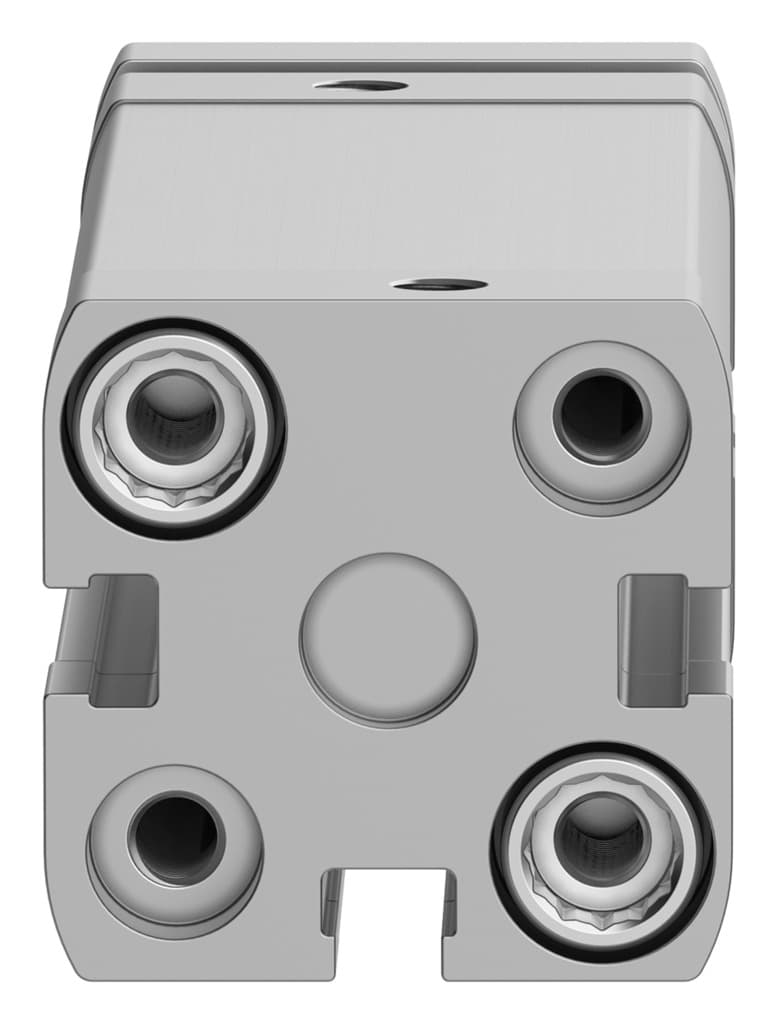

Compact Pneumatic Cylinder ADNGF-20-60-PPS-A by Festo

Selling Points

1Self-adjusting pneumatic end-position cushioning ensures smooth operation and reduces wear.
2Compact design with a stroke of 60 mm and piston diameter of 20 mm, ideal for space-constrained applications.
3Double-acting mode allows for both forward and reverse motion, enhancing versatility.
4Operating pressure range from 1.9 to 10 bar, accommodating various industrial requirements.
5Corrosion resistance class CRC 2 provides moderate corrosion stress protection, ensuring durability in harsh environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	60mm	Piston diameter	20 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.9bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	0.2J
Cushioning length	3mm	Theoretical force at 6 bar, retracting	141N
Theoretical force at 6 bar, advancing	188N	Moving mass	120g
Product weight	308g	Pneumatic connection	M5
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	577215

Specifications may be subject to change without notice
