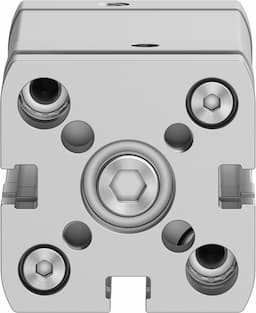

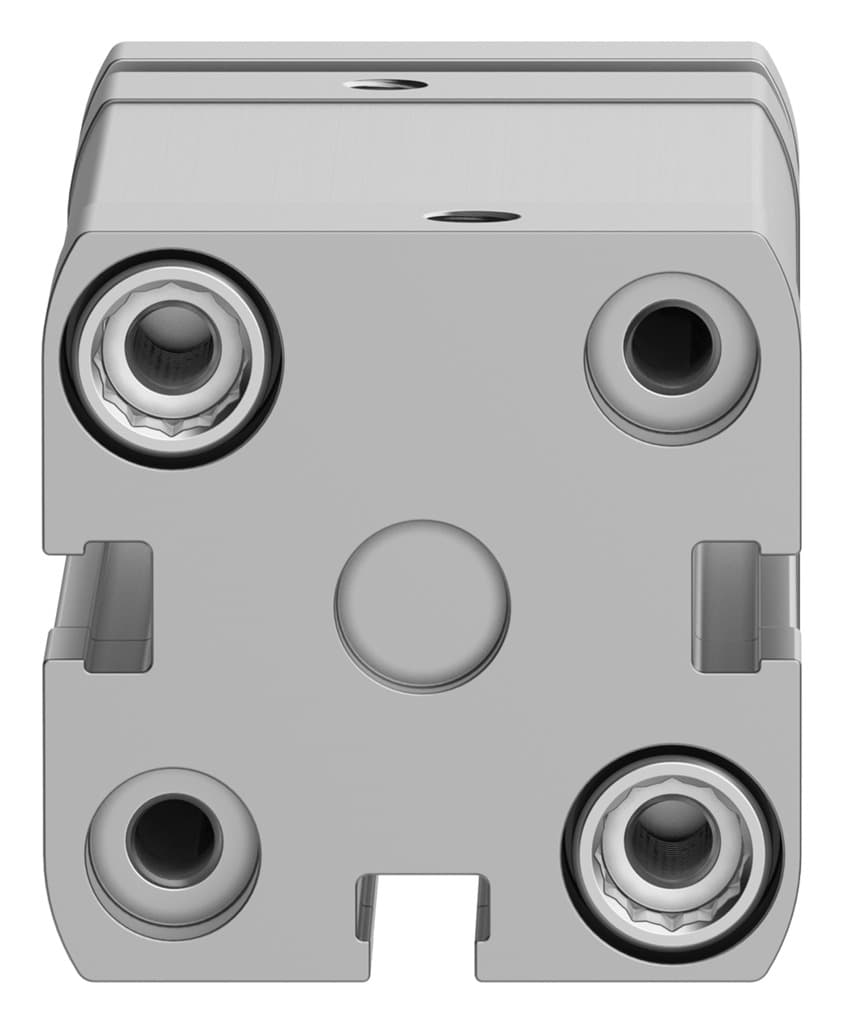

Festo ADNGF-25-30-PPS-A Compact Cylinder | High Precision Pneumatic Actuator

Selling Points

1High Precision Pneumatic Actuator: Designed for precise control with a 25mm piston diameter and 30mm stroke.
2Self-Adjusting Cushioning: PPS end-position cushioning ensures smooth operation and reduces wear.
3Versatile Assembly: Compatible with any assembly position, making it adaptable to various applications.
4Robust Construction: Built with high alloy steel piston rod and wrought aluminum alloy cylinder barrel for durability.
5Compliant with ISO Standards: Meets ISO 21287 and ISO8573-1:2010 standards for reliability and safety.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	30mm	Piston diameter	25 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.9bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	0.3J
Cushioning length	3.5mm	Theoretical force at 6 bar, retracting	247N
Theoretical force at 6 bar, advancing	295N	Moving mass	127g
Product weight	309g	Pneumatic connection	M5
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	577220

Specifications may be subject to change without notice
