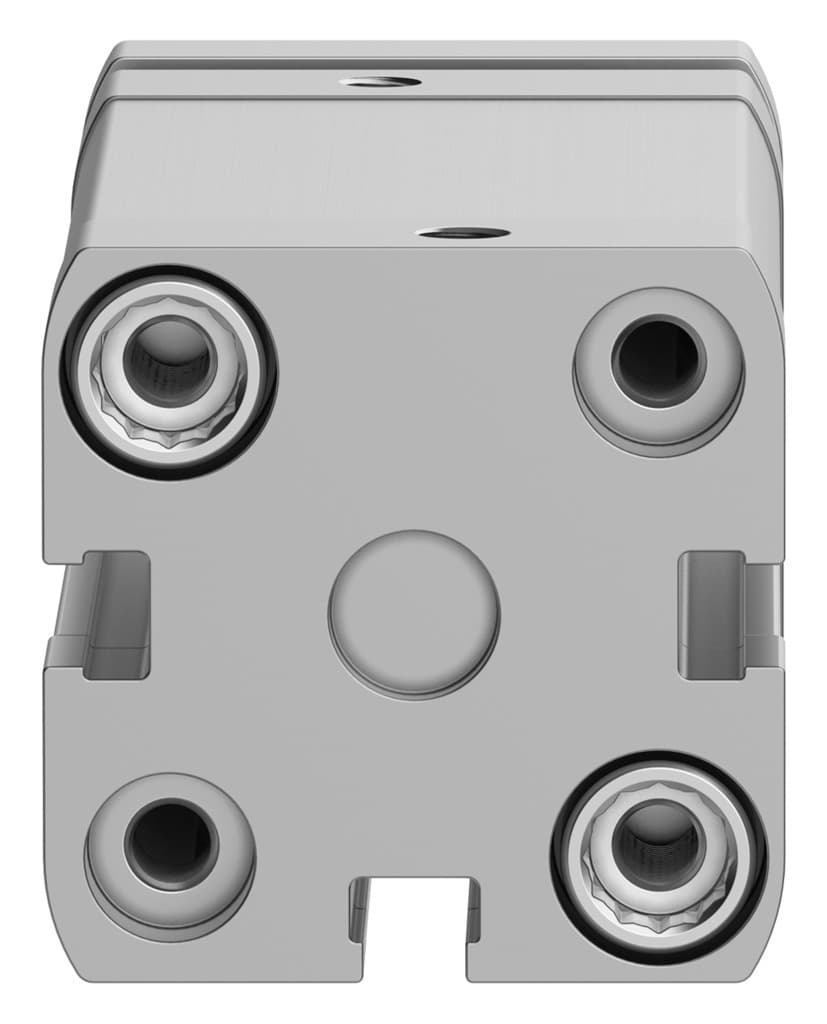

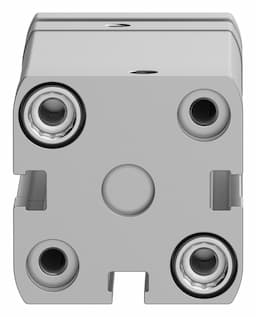

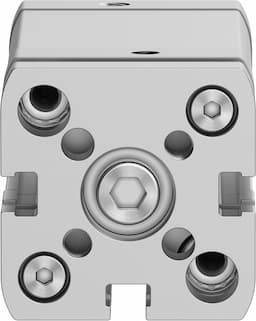

Festo ADNGF-25-40-PPS-A Compact Pneumatic Cylinder

Selling Points

1The ADNGF-25-40-PPS-A is designed for space efficiency, making it perfect for applications where space is limited.
2Equipped with PPS self-adjusting pneumatic end-position cushioning for optimal performance and durability.
3Capable of both extending and retracting, providing versatile functionality in various applications.
4Ideal for applications requiring high precision due to its precise control over movement.
5Classified as moderate corrosion stress (CRC 2), ensuring reliability in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	40mm	Piston diameter	25 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.9bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	0.3J
Cushioning length	3.5mm	Theoretical force at 6 bar, retracting	247N
Theoretical force at 6 bar, advancing	295N	Moving mass	138g
Product weight	339g	Pneumatic connection	M5
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	577221

Specifications may be subject to change without notice
