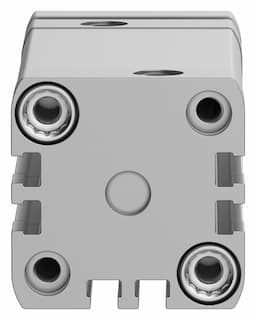

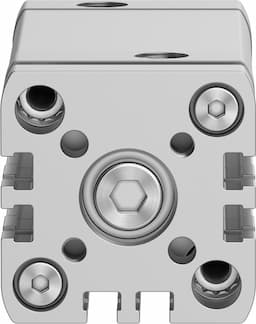

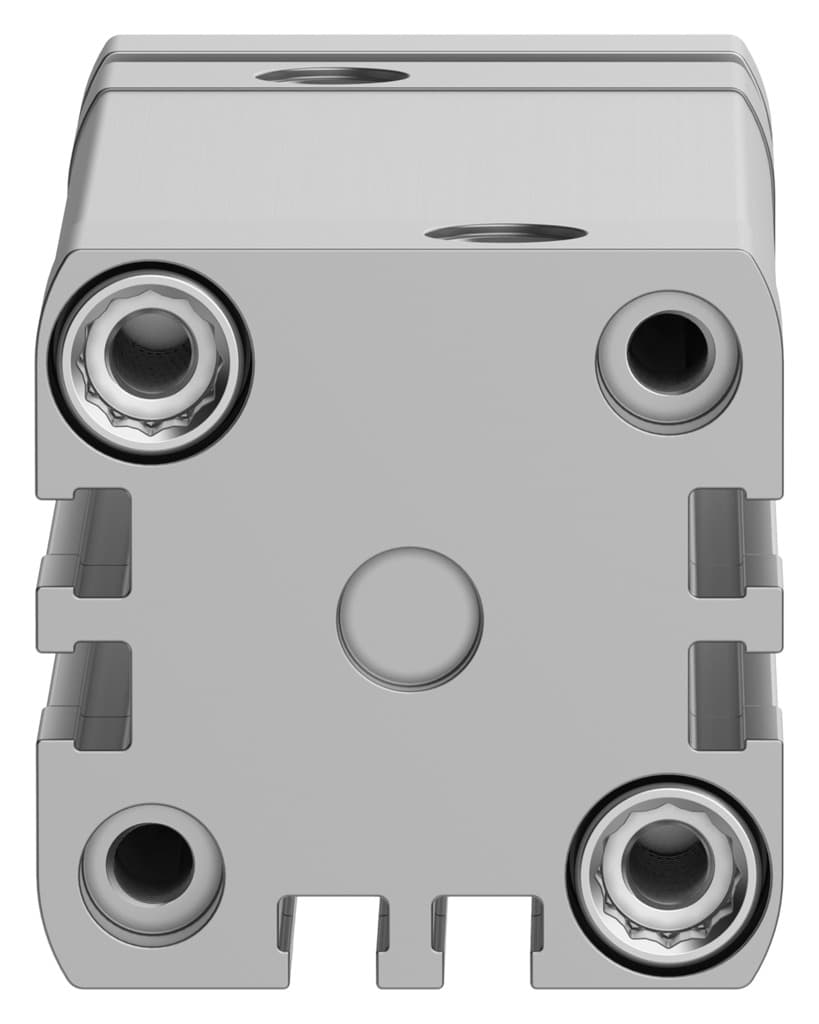

Festo ADNGF-32-60-PPS-A Pneumatic Cylinder

Selling Points

1Compact Design: 60 mm stroke and 32 mm piston diameter for efficient use in tight spaces.
2Self-Adjusting Cushioning: PPS: Self-adjusting pneumatic end-position cushioning ensures smooth operation.
3Versatile Assembly: Can be assembled in any position, offering flexibility in installation.
4Double-Acting Operation: Suitable for both retracting and advancing strokes, enhancing operational versatility.
5Compressed Air Compatible: Operates with compressed air in accordance with ISO8573-1:2010 [7:4:4], ensuring reliable performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	60mm	Piston diameter	32 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.9bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	1J
Cushioning length	4mm	Theoretical force at 6 bar, retracting	415N
Theoretical force at 6 bar, advancing	483N	Moving mass	233g
Product weight	540g	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	574029

Specifications may be subject to change without notice
