Product Model

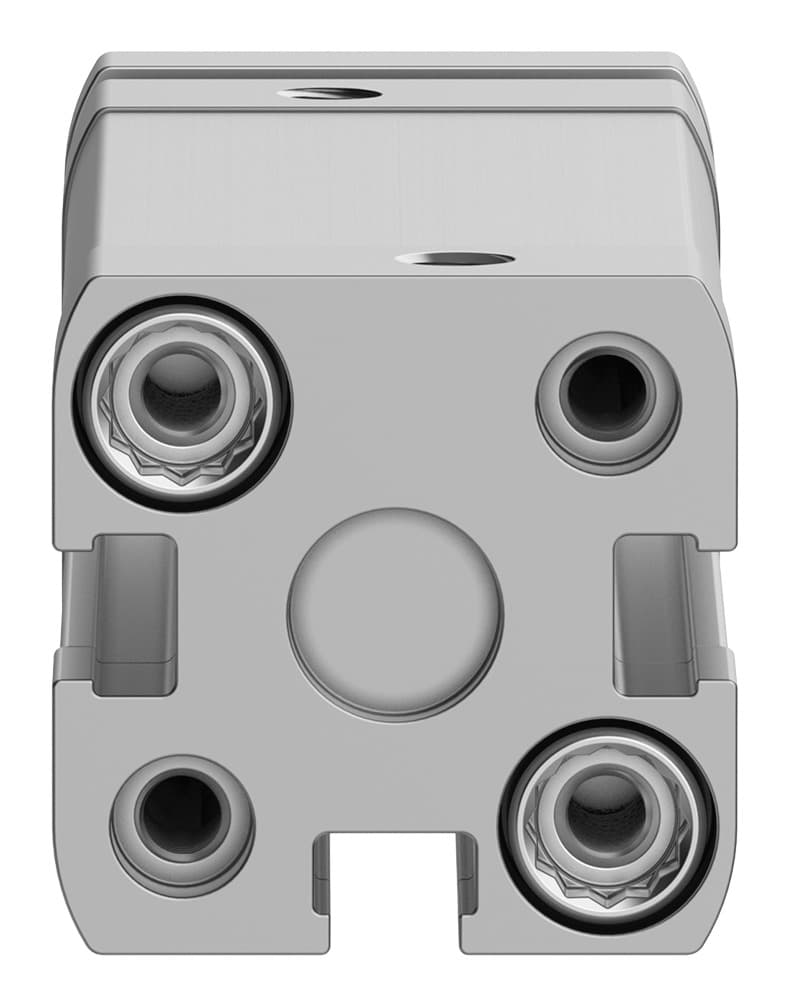

adngf-5/8"-1 1/2"-p-a
Selling Points
- 1Compact design for confined spaces.
- 2Double-acting operation for precise control.
- 3ISO standardized for interchangeability.
- 4Elastic cushioning rings/plates at both ends for energy absorption.
- 5Suitable for a wide range of pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 38.1mm | Piston diameter | 5/8" |
Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.1505J |
Theoretical force at 6 bar, retracting | 90.001N | Theoretical force at 6 bar, advancing | 121.001N |
Moving mass at 0?mm stroke | 29.115g | Additional moving mass per 10?mm stroke | 16.046g |
Basic weight with 0?mm stroke | 93.328g | Additional weight per 10?mm stroke | 6.01g |
Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | 10-32 UNF-2B |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Seals material | NBR | Material of dynamic seals | TPE-U(PU) |
End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 557211 |
Specifications may be subject to change without notice
