Product Model

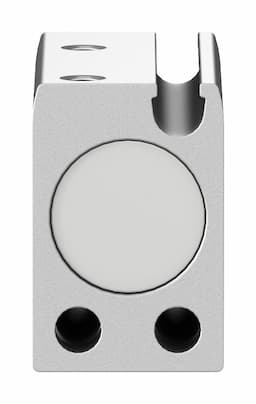

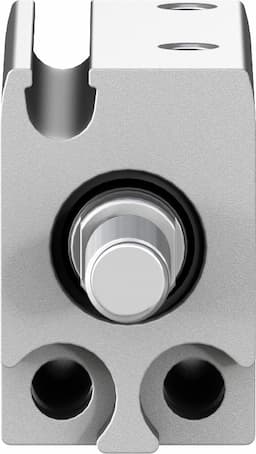

adn-s-10-10-a-a-f1a
Selling Points
- 1The ADN-S-10-10-A-A-F1A compact cylinder offers precise double-acting operation, ensuring reliable performance in various industrial applications.
- 2This cylinder features optional mounting positions, allowing for flexible installation in different production settings.
- 3With a corrosion resistance class of CRC 2, the ADN-S-10-10-A-A-F1A is suitable for applications requiring moderate corrosion stress, making it ideal for use in production facilities.
- 4The cylinder is designed to meet cleanroom class 6 standards according to ISO 14644-1, ensuring it can be used in controlled environments such as those found in lithium-ion battery manufacturing.
- 5Constructed with high-alloy stainless steel for the piston rod and anodized wrought aluminum alloy for the housing, this cylinder provides durability and resistance to wear.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 10 mm |
Cushioning | No cushioning | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | External thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991216 | Variants | Recommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end |
Operating pressure | 14.5psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
Impact energy in the end positions | 0.012J | Theoretical force at 6 bar, retracting | 30.2N |
Theoretical force at 6 bar, advancing | 47N | Moving mass | 5.7g |
Product weight | 17.7g | Type of mounting | With through-hole |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized Anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 8142524 |
Specifications may be subject to change without notice
