Product Model
adn-s-10-10-i-a-f1a
Selling Points

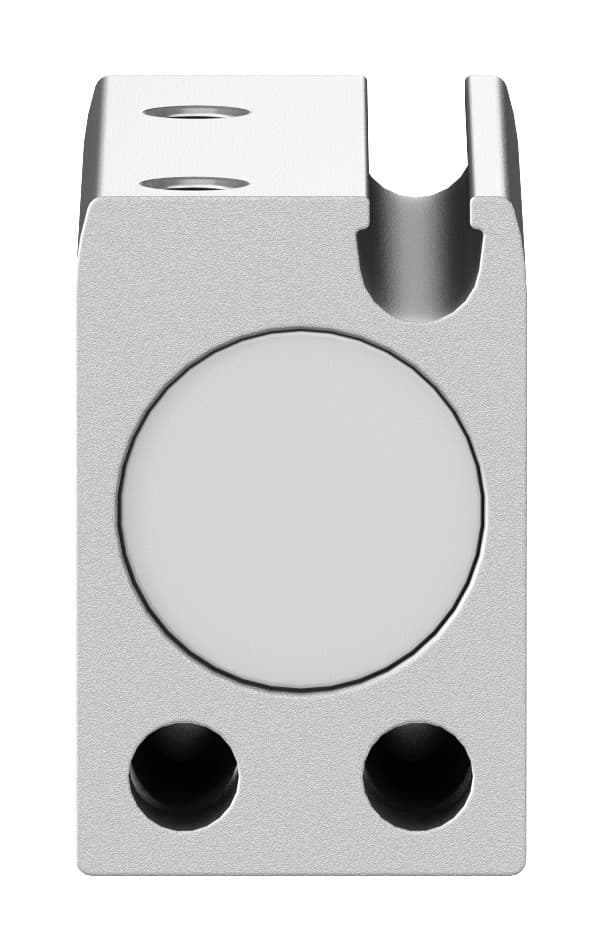

- 1The Festo ADN-S-10-10-I-A-F1A compact cylinder features a stroke of 10 mm and a piston diameter of 10 mm, making it suitable for a wide range of applications.
- 2This double-acting cylinder operates without cushioning, allowing for precise control and efficient operation in various environments.
- 3Designed for production facilities, especially those manufacturing lithium-ion batteries, this cylinder ensures high reliability and performance in cleanroom conditions.
- 4The ADN-S-10-10-I-A-F1A is compatible with compressed air as per ISO 8573-1:2010 and can operate with oil lubrication, enhancing its durability and efficiency.
- 5Constructed from high-quality materials including wrought aluminum alloy and high-alloy stainless steel, this cylinder meets RoHS compliance and offers excellent corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 10 mm |
Cushioning | No cushioning | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | Internal thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991216 | Variants | Recommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end |
Operating pressure | 14.5psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
Impact energy in the end positions | 0.012J | Theoretical force at 6 bar, retracting | 30.2N |
Theoretical force at 6 bar, advancing | 47N | Moving mass | 5.7g |
Product weight | 17.7g | Type of mounting | With through-hole |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized Anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 8142521 |
Specifications may be subject to change without notice
