Product Model
adn-s-10-5-a-f1a
Selling Points

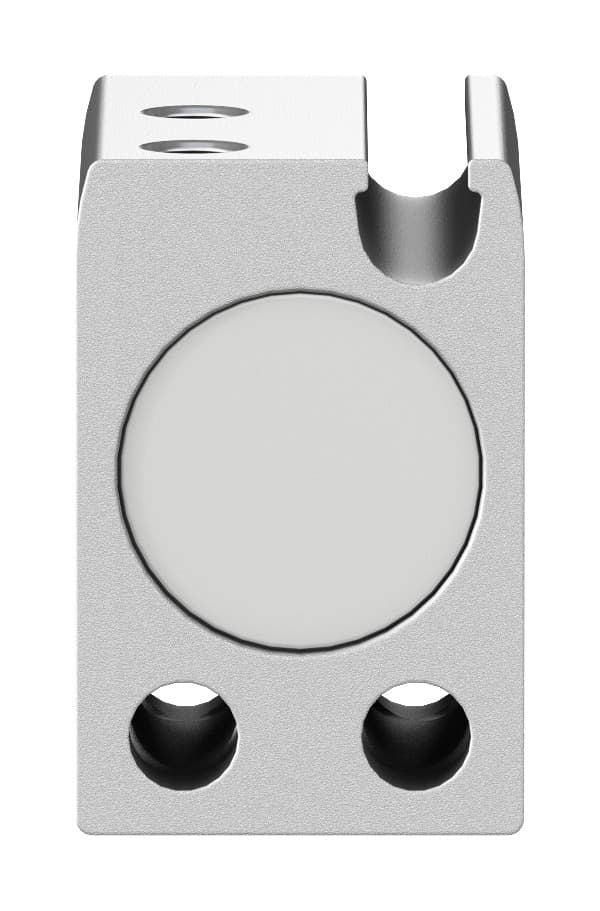

- 1The Festo ADN-S-10-5-A-F1A pneumatic cylinder offers a stroke length of 10 mm, making it ideal for applications requiring precise movement and control.
- 2This compact cylinder features a piston diameter of 10 mm and operates at an ambient temperature range of -10°C to 60°C, ensuring reliable performance in various environments.
- 3With a moving mass of 4.1 g and a product weight of 12.2 g, the ADN-S-10-5-A-F1A is lightweight yet robust, facilitating easy integration into complex automation systems.
- 4The cylinder is designed with a male thread at the piston-rod end and features no cushioning, allowing for smooth operation and precise control over the piston's movement.
- 5The ADN-S-10-5-A-F1A is RoHS-compliant and made from high-quality materials, including wrought aluminum alloy for the housing and high-alloy stainless steel for the piston rod, ensuring durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 10 mm |
Cushioning | No cushioning | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | External thread |
Structural design | Piston Piston rod | Symbol | 00991215 |
Variants | Recommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end | Operating pressure | 14.5psi 116psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -10°C 60°C | Impact energy in the end positions | 0.012J |
Theoretical force at 6 bar, retracting | 30.2N | Theoretical force at 6 bar, advancing | 47N |
Moving mass | 4.1g | Product weight | 12.2g |
Type of mounting | With through-hole | Pneumatic connection | M3 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Material of dynamic seals | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized Anodized |
Piston rod material | High-alloy stainless steel | Manufacturer ID | 8142522 |
Specifications may be subject to change without notice
