Product Model

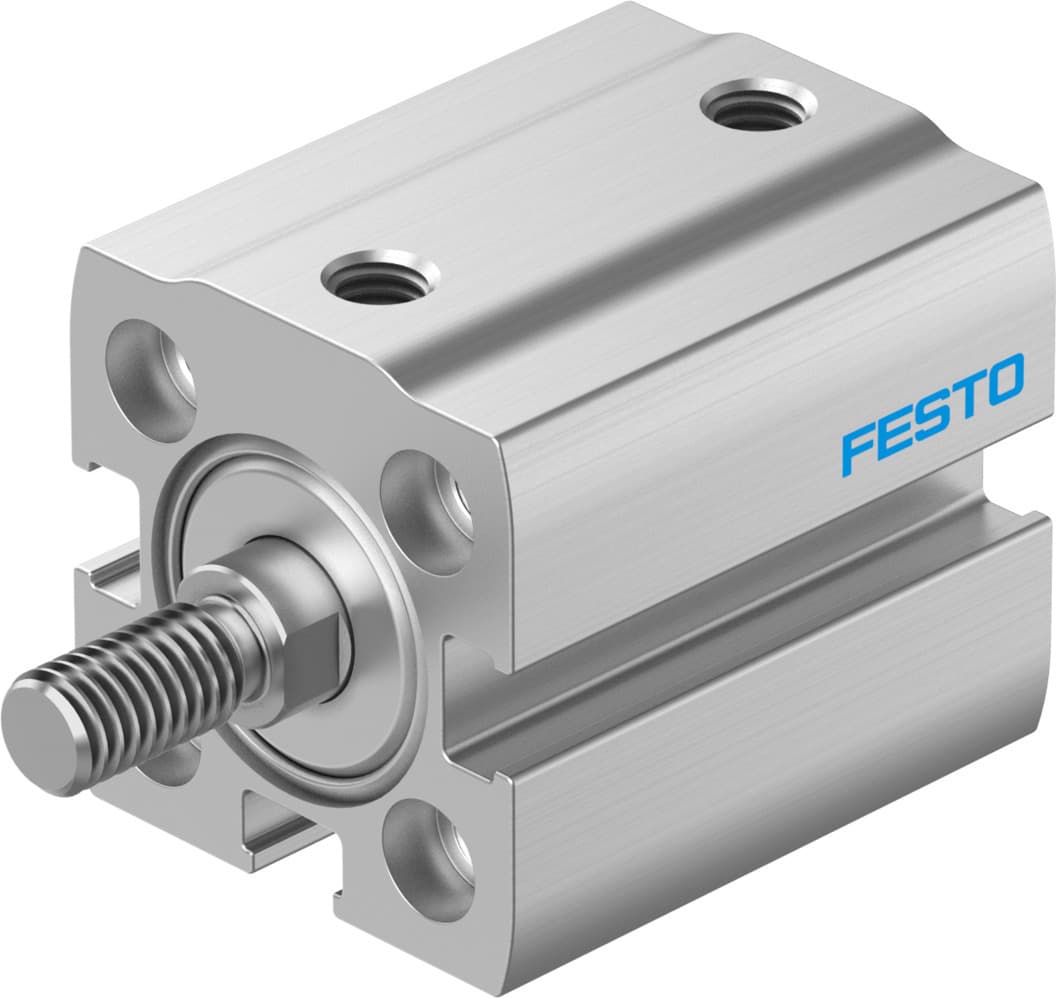

adn-s-16-25-a-p-a-f1a
Selling Points
- 1The ADN-S-16-25-A-P-A-F1A compact cylinder operates in double-acting mode, allowing for both extension and retraction strokes, enhancing versatility in various automation tasks.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces wear and tear, ensuring reliable performance over time.
- 3With a corrosion resistance class of CRC 2, the ADN-S-16-25-A-P-A-F1A is suitable for applications where moderate corrosion stress is present, making it ideal for production facilities.
- 4The cylinder features position sensing via a proximity switch, enabling precise control and monitoring of the piston's position, which is crucial in applications like lithium-ion battery manufacturing.
- 5The ADN-S-16-25-A-P-A-F1A can be mounted via through-hole or female thread, offering flexibility in installation and integration with various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 25mm | Piston diameter | 16 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | External thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Variants | Recommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end |
Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | 0°C 60°C |
Impact energy in the end positions | 0.15J | Theoretical force at 6 bar, retracting | 90N |
Theoretical force at 6 bar, advancing | 121N | Moving mass at 0?mm stroke | 11g |
Additional moving mass per 10?mm stroke | 4g | Basic weight with 0?mm stroke | 42g |
Additional weight per 10?mm stroke | 18g | Type of mounting | With through-hole With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 8142739 |
Specifications may be subject to change without notice
