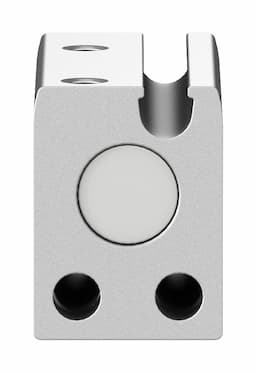

Product Model
adn-s-6-10-a-a-f1a
Selling Points
- 1The ADN-S-6-10-A-A-F1A features a slim and short design, making it perfect for space-challenged constructions in relatively clean environments.
- 2This double-acting cylinder delivers excellent performance with small movements, ensuring efficient operation in various industrial applications.
- 3With a moderate corrosion resistance class (CRC 2), the ADN-S-6-10-A-A-F1A is suitable for production facilities, including those manufacturing lithium-ion batteries.
- 4Equipped with a proximity sensor, this cylinder allows for precise position detection, enhancing the accuracy of your automation systems.
- 5Constructed with high-alloy stainless steel for the piston rod and anodised wrought aluminium alloy for the housing, ensuring durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 6 mm |
Cushioning | No cushioning | Mounting position | Any |
Mode of operation | Double-acting | Piston rod end | External thread |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991216 | Variants | Recommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end |
Operating pressure | 21.75psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
Impact energy in the end positions | 0.006J | Theoretical force at 6 bar, retracting | 9.4N |
Theoretical force at 6 bar, advancing | 17N | Moving mass | 2.4g |
Product weight | 13.6g | Type of mounting | With through-hole |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
Housing material | Wrought aluminum alloy, anodized Anodized | Piston rod material | High-alloy stainless steel |
Manufacturer ID | 8142516 |
Specifications may be subject to change without notice
