Product Model

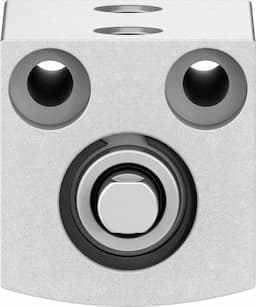

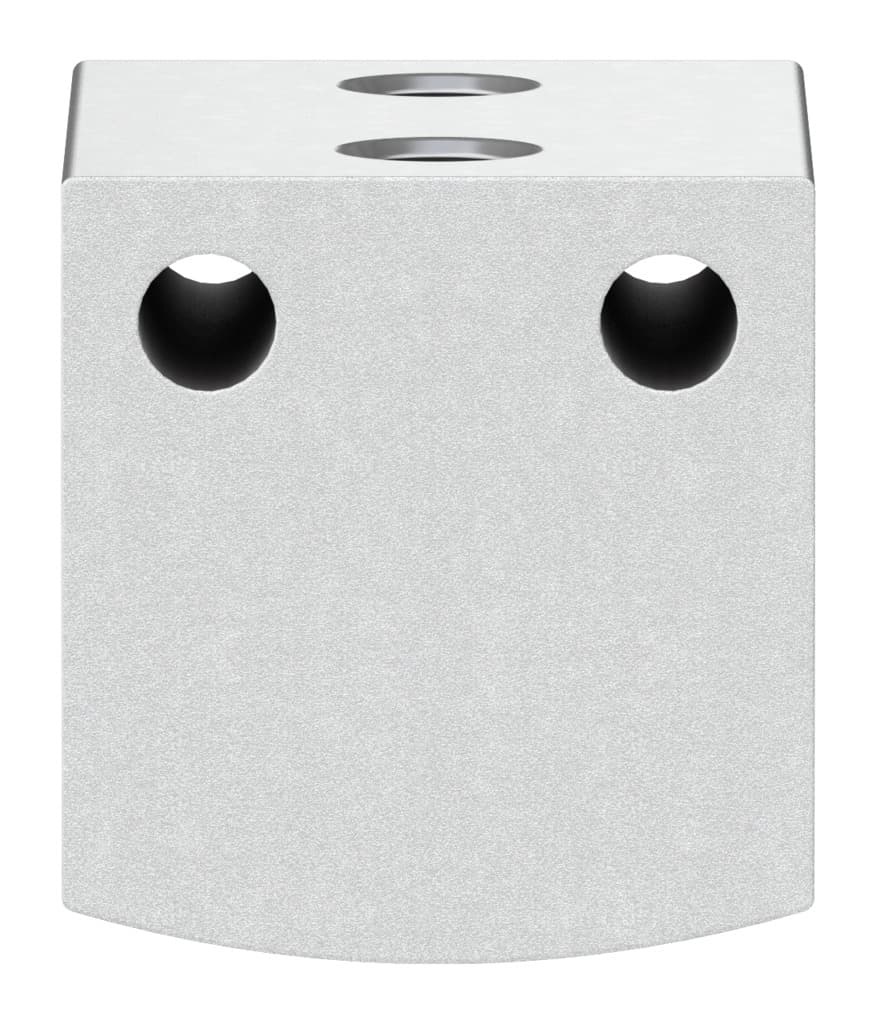

advc-10-10-p
Selling Points
- 1The ADVC-10-10-P offers precise control with a stroke length of 10 mm, ensuring reliable performance in various industrial applications.
- 2This cylinder operates in both directions, providing flexibility and efficiency in your pneumatic systems.
- 3Equipped with elastic cushioning rings at both ends, it reduces wear and tear, extending the lifespan of the cylinder.
- 4Compatible with operating pressures from 0.1 MPa to 0.8 MPa (1 bar to 8 bar), making it versatile for different pneumatic setups.
- 5Made from high-quality materials like wrought aluminum alloy and high-alloy steel, ensuring low corrosion stress and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10mm | Piston diameter | 10 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod |
Position sensing | None | Symbol | 00991227 |
Operating pressure | 14.5psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, retracting | 40N | Theoretical force at 6 bar, advancing | 47N |
Moving mass | 3.3g | Product weight | 21g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 526904 |
Specifications may be subject to change without notice
