Product Model

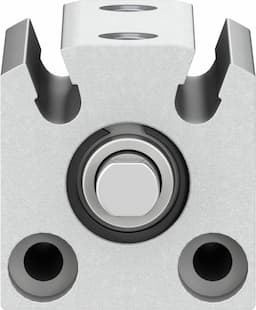

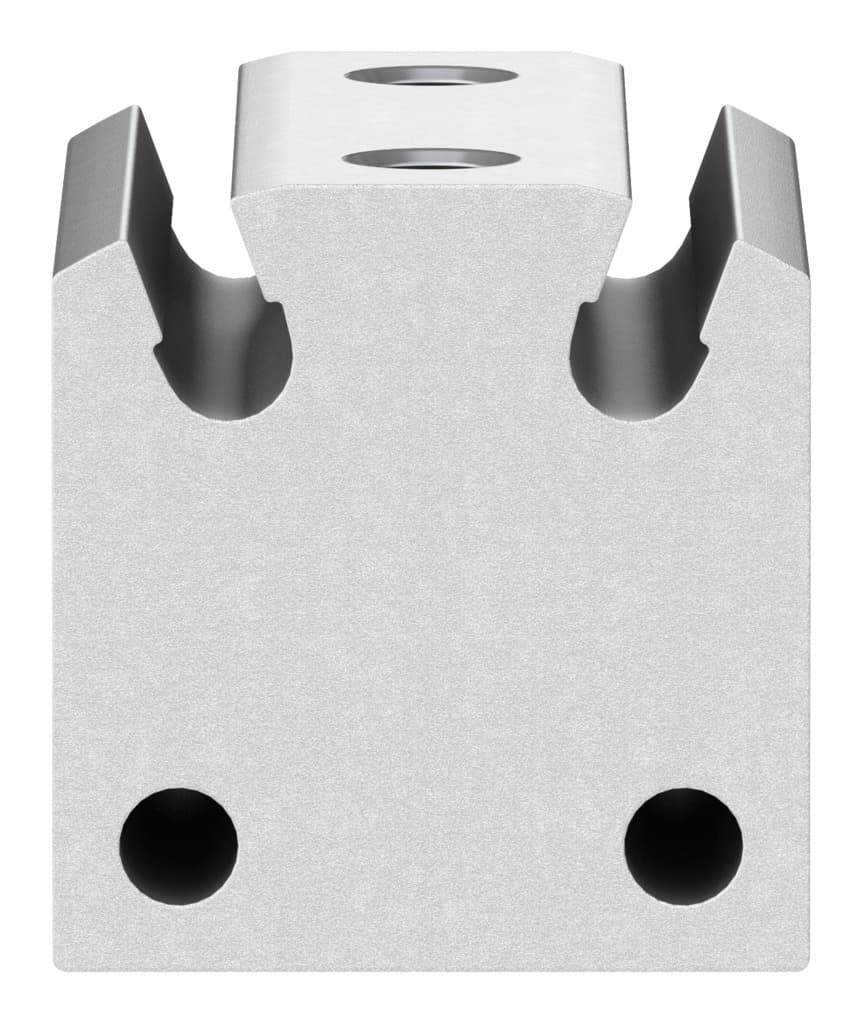

advc-10-10-p-a

Selling Points
- 1The AdvC-10-10-P-A from Festo is designed to provide high-quality automation components, ensuring efficient and reliable industrial processes. Its robust construction and precise engineering make it ideal for demanding applications.
- 2This product features standardized IO-Link technology, facilitating simple and economical communication with sensors and actuators. This technology reduces complexity and minimizes material requirements.
- 3The AdvC-10-10-P-A offers a wide range of pneumatic and electrical components, including pneumatic valves, cylinders, and controls. These components can be easily integrated into various automation systems.
- 4Festo's commitment to quality is evident in the AdvC-10-10-P-A, which is part of their core range of products. These components are known for their high quality, fast shipping, and attractive price point.
- 5The product is part of Festo's holistic approach to automation solutions, ensuring that every component is designed to work seamlessly with other Festo products. This integration simplifies the procurement process and enhances overall system reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Stroke | 10mm | Piston diameter | 10 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 14.5psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, retracting | 40N | Theoretical force at 6 bar, advancing | 47N |
Moving mass | 3.7g | Product weight | 34g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 526906 |
Specifications may be subject to change without notice
