Product Model

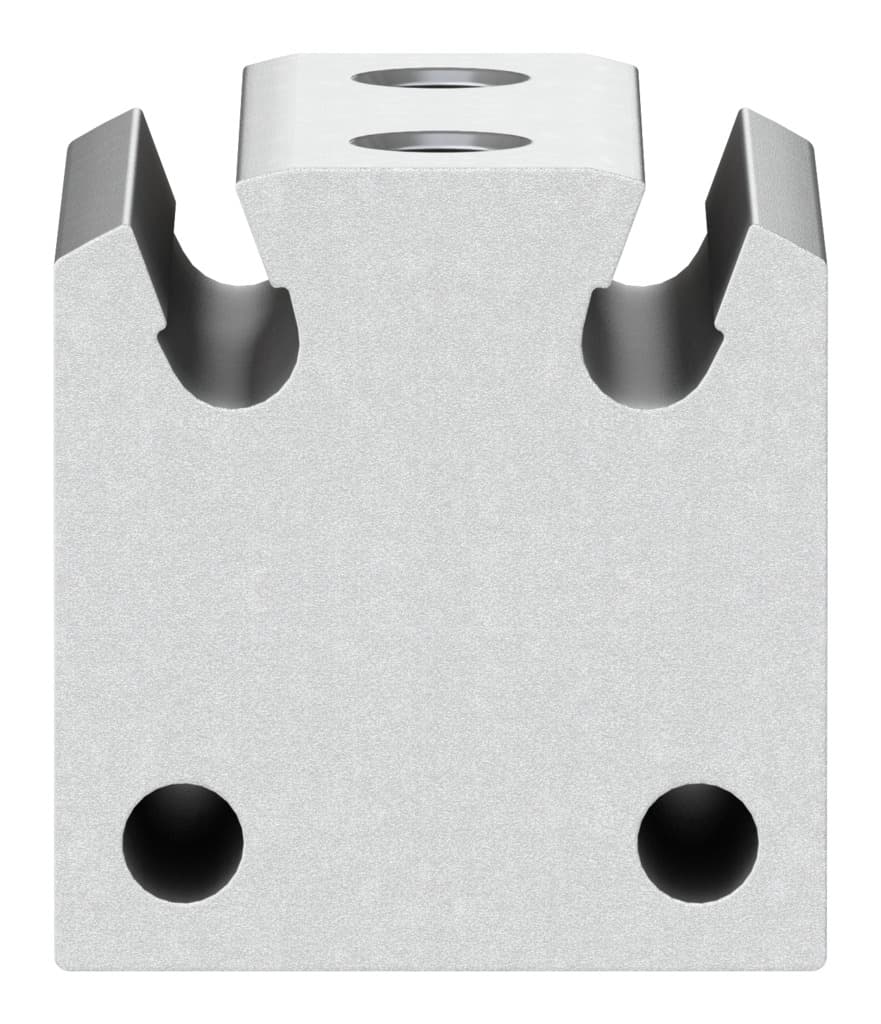

advc-10-5-p-a
Selling Points
- 1The ADVC-10-5-P-A short-stroke cylinder offers precise control with a stroke of 5 mm, making it ideal for applications requiring minimal movement.
- 2This cylinder can be mounted via through-hole or with accessories, providing flexibility in installation.
- 3Equipped with elastic cushioning rings/pads at both ends, the ADVC-10-5-P-A ensures smooth operation and reduces wear and tear.
- 4Compatible with operating pressures from 0.6 to 10 bar, this cylinder is versatile for various industrial applications.
- 5Built with a corrosion resistance class of CRC 1 and conforming to LABS (PWIS) standards, the ADVC-10-5-P-A is durable and resistant to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 5mm | Piston diameter | 10 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Mode of operation | Double-acting | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991217 |
Operating pressure | 14.5psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Theoretical force at 6 bar, retracting | 40N | Theoretical force at 6 bar, advancing | 47N |
Moving mass | 3.2g | Product weight | 29g |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
Piston rod material | High-alloy steel | Manufacturer ID | 526905 |
Specifications may be subject to change without notice
