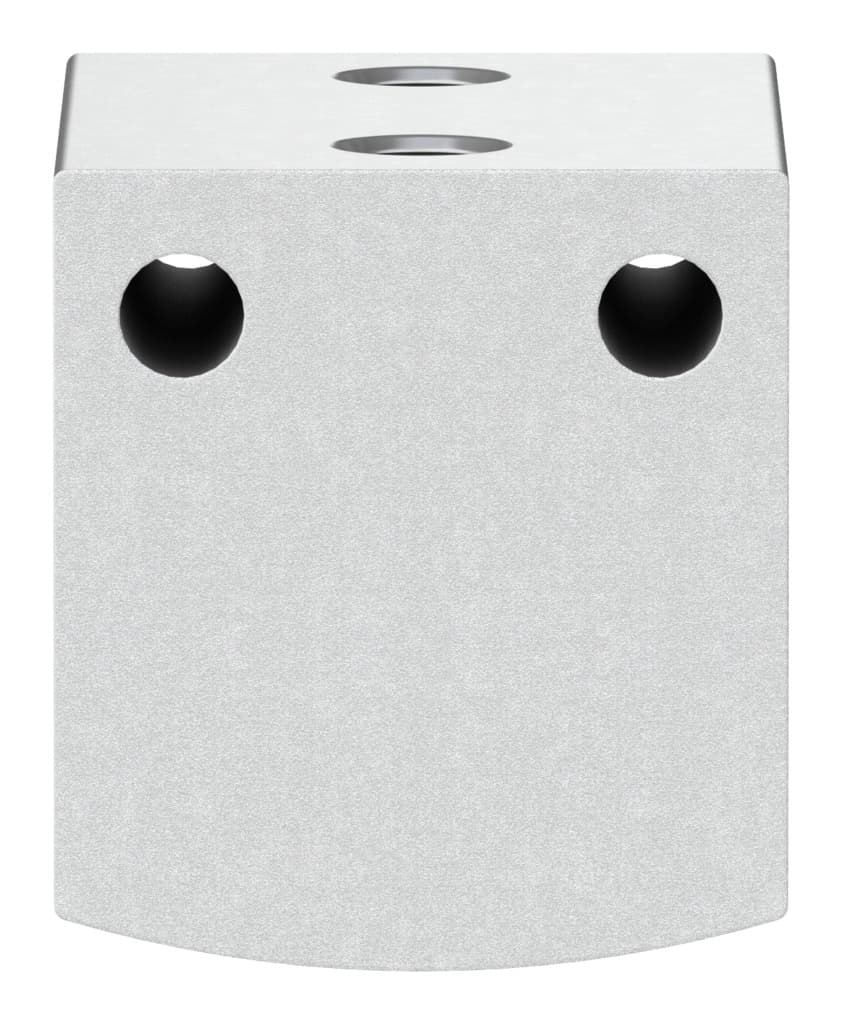

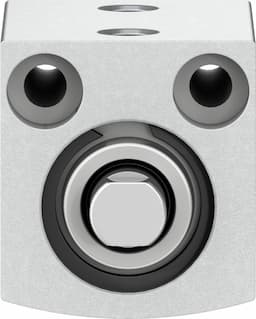

Festo ADVC-12-10-P Short Stroke Cylinder - High-Quality Pneumatic Components

Selling Points

1The Festo ADVC-12-10-P short stroke cylinder offers a piston diameter of 12 mm and a stroke length of 10 mm, making it ideal for applications requiring precise movement.
2This cylinder features elastic cushioning rings/pads at both ends, ensuring smooth operation and reducing wear on the components.
3The ADVC-12-10-P operates with compressed air to ISO 8573-1:2010 [7:4:4] standards, ensuring high-quality air supply for optimal performance.
4With a corrosion resistance class of CRC 1, this cylinder is designed to withstand low corrosion stress, making it suitable for various industrial environments.
5The Festo ADVC-12-10-P is designed for double-acting operation, providing consistent force in both retracting and advancing strokes, enhancing overall system efficiency.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	12 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	None	Symbol	00991227
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	51N	Theoretical force at 6 bar, advancing	68N
Moving mass	7.7g	Product weight	34g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	530569

Specifications may be subject to change without notice
