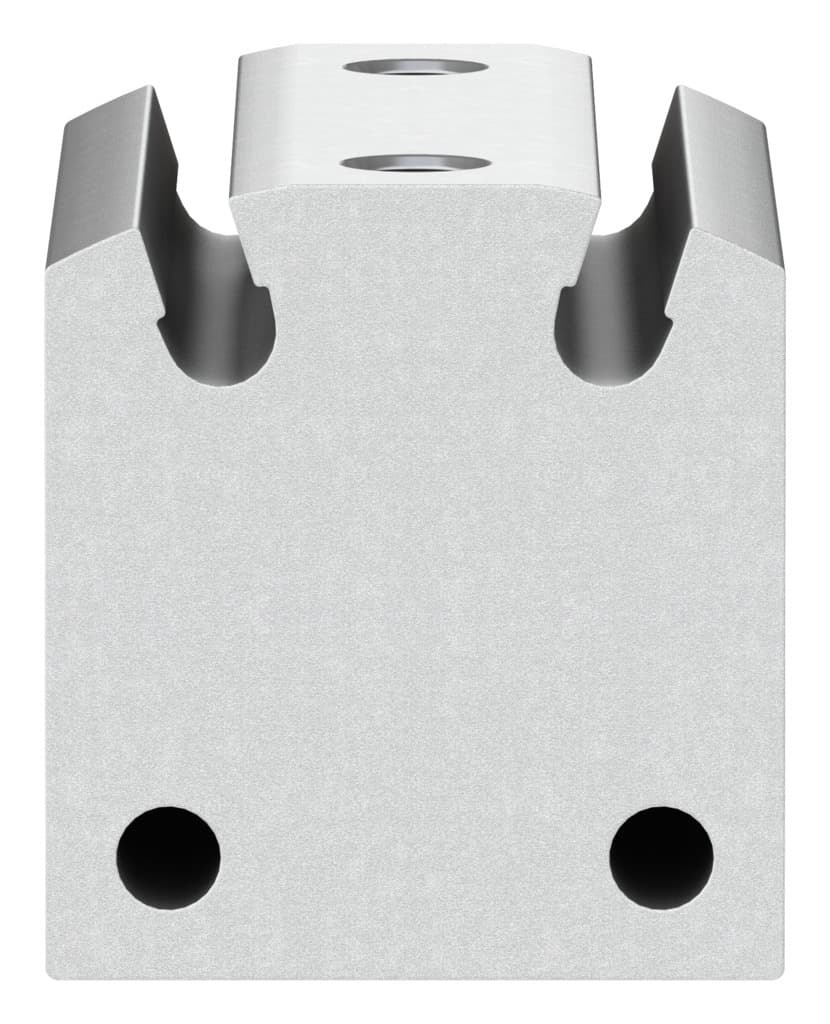

Festo ADVC-12-10-P-A Short Stroke Cylinder Specifications

Selling Points

1The ADVC-12-10-P-A short stroke cylinder from Festo features a piston diameter of 12 mm and a stroke length of 10 mm, making it suitable for precise and compact applications.
2This cylinder operates with compressed air as per ISO 8573-1:2010 [7:4:4] and supports lubricated operation, ensuring reliable performance in various environments.
3The ADVC-12-10-P-A offers double-acting operation with elastic cushioning rings/pads at both ends, providing smooth movement and reduced wear.
4With an operating pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar), this cylinder is versatile and can be used in a variety of industrial settings.
5The product has a low corrosion resistance class (CRC) of 1, indicating it is designed for applications with minimal corrosion stress, ensuring longevity in harsh conditions.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	12 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	51N	Theoretical force at 6 bar, advancing	68N
Moving mass	9.6g	Product weight	64g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	530573

Specifications may be subject to change without notice
