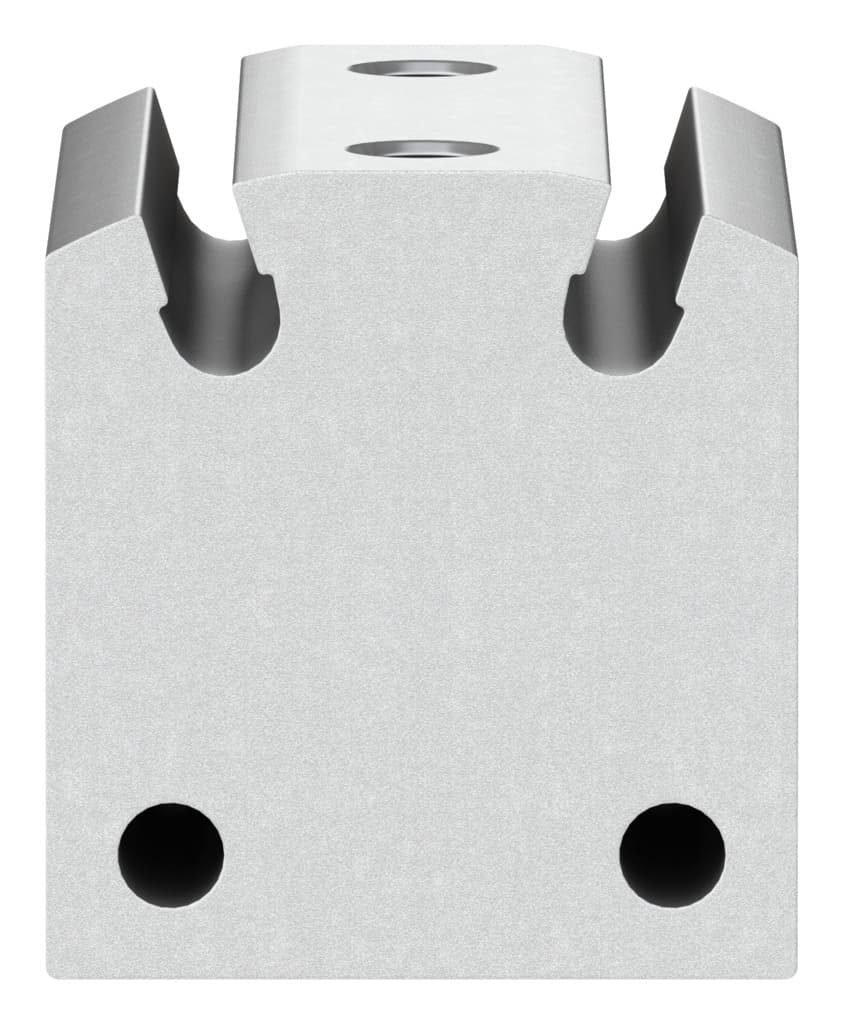

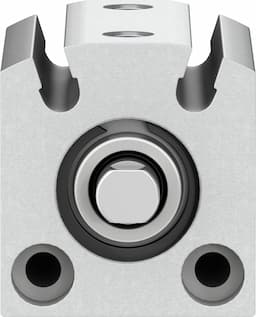

Festo ADVC-12-5-P-A Short Stroke Cylinder | High-Quality Pneumatic Components

Selling Points

1The Festo ADVC-12-5-P-A short stroke cylinder is designed for proximity sensing applications, ensuring precise positioning and control in your pneumatic systems.
2With a piston diameter of 12 mm and a stroke of 5 mm, this cylinder offers a compact and efficient design suitable for various mounting positions.
3The ADVC-12-5-P-A features elastic cushioning rings/plates at both ends, providing smooth operation and reducing wear on the cylinder.
4This double-acting cylinder operates within a wide pressure range of 1 to 10 bar, making it versatile for various industrial applications.
5The Festo ADVC-12-5-P-A is constructed from high-quality materials with a low corrosion resistance class (CRC) of 1, ensuring durability in demanding environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	5mm	Piston diameter	12 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	51N	Theoretical force at 6 bar, advancing	68N
Moving mass	8.5g	Product weight	56g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	530572

Specifications may be subject to change without notice
