Product Model

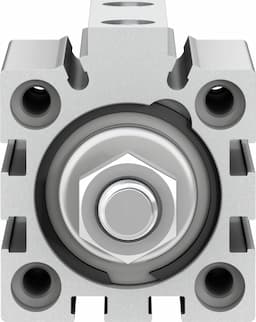

advc-32-20-a-p-a
Selling Points
- 1High Precision and Durability: Built with high-alloy steel piston rods and anodized aluminum housing for long-lasting performance.
- 2Versatile Pneumatic Connections: Compatible with G1/8 pneumatic connections, ensuring easy integration into your system.
- 3Double-Acting Operation: Designed for double-acting operation, providing balanced force in both retracting and advancing strokes.
- 4Elastic Cushioning Rings: Equipped with elastic cushioning rings at both ends for smooth operation and reduced wear.
- 5Wide Operating Pressure Range: Operates effectively between 0.1 MPa to 1 MPa (1 bar to 10 bar), accommodating various industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 20mm | Piston diameter | 32 mm |
Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Piston Piston rod | Position sensing | For proximity sensor |
Symbol | 00991217 | Operating pressure | 14.5psi 145psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 415N |
Theoretical force at 6 bar, advancing | 483N | Moving mass | 65g |
Moving mass at 0?mm stroke | 45g | Additional moving mass per 10?mm stroke | 10g |
Product weight | 239g | Basic weight with 0?mm stroke | 166g |
Additional weight per 10?mm stroke | 90g | Type of mounting | Optionally: With through-hole With accessories |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
Manufacturer ID | 188217 |
Specifications may be subject to change without notice
