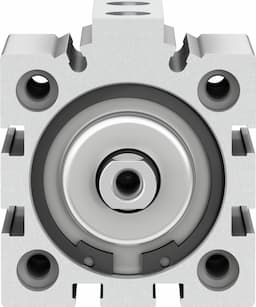

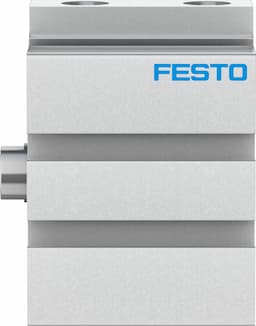

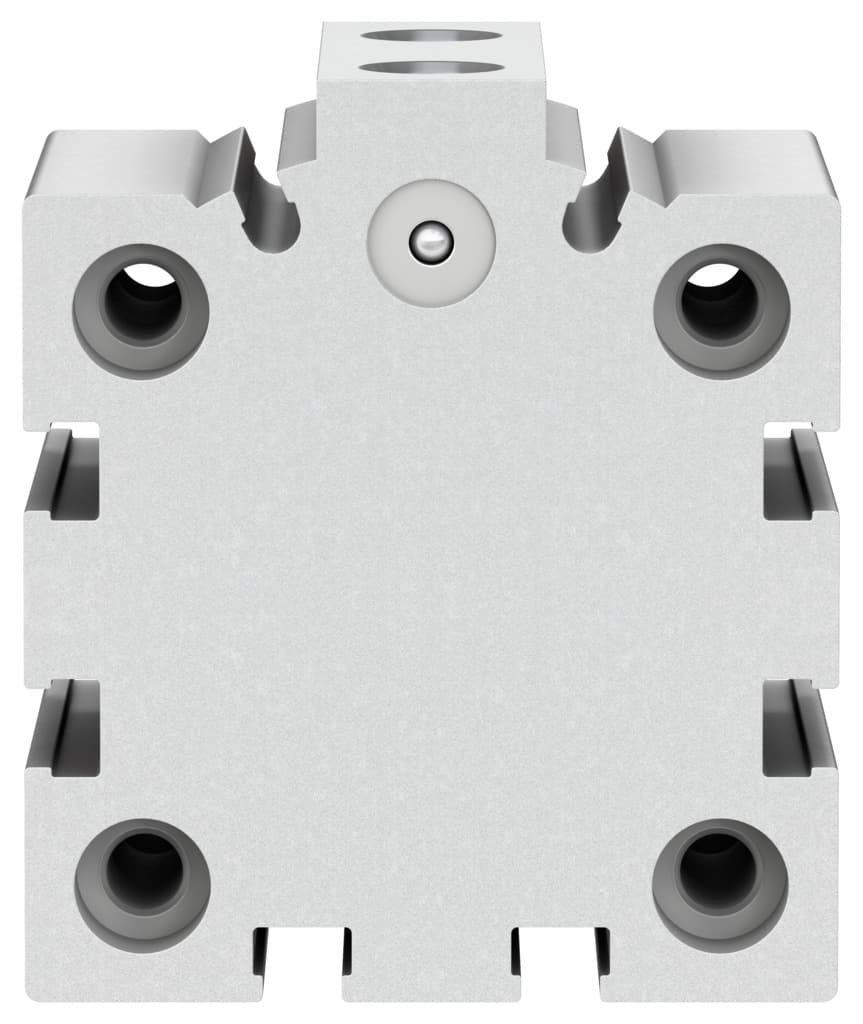

Festo ADVC-40-15-I-P Short Stroke Cylinder - High Precision and Durability

Selling Points

1High Precision Operation: Double-acting design ensures precise control and consistent performance.
2Robust Construction: Made with high-alloyed steel piston rod and anodized aluminum housing for durability.
3Low Corrosion Stress: Classified as corrosion resistant class KBK 1, suitable for various environments.
4Flexible Cushioning: Equipped with elastic silencer rings/plates for effective dampening and noise reduction.
5Versatile Installation: Can be installed in any position, offering flexibility in application setup.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	15mm	Piston diameter	40 mm
Based on norm	ISO 6431 Hole pattern VDMA 24562	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Piston Piston rod	Position sensing	None
Symbol	00991227	Operating pressure	14.5psi 145psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	686N
Theoretical force at 6 bar, advancing	754N	Moving mass	79g
Moving mass at 0?mm stroke	64g	Additional moving mass per 10?mm stroke	10g
Product weight	277g	Basic weight with 0?mm stroke	226g
Additional weight per 10?mm stroke	28g	Type of mounting	Optionally: With through-hole With accessories
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy Anodized	Seals material	NBR TPE-U(PU)
Housing material	Wrought aluminum alloy Anodized	Piston rod material	High-alloy steel
Manufacturer ID	188239

Specifications may be subject to change without notice
