Product Model
aen-25- -
Selling Points

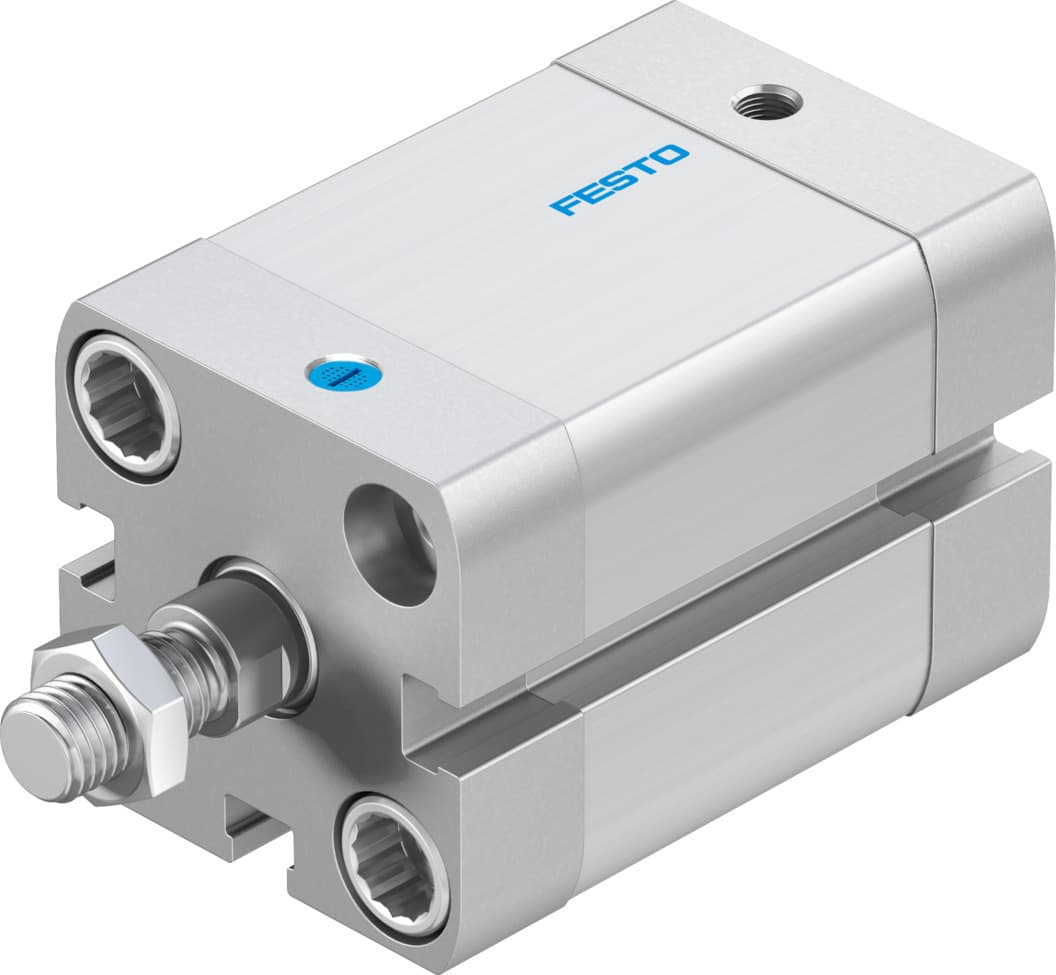

- 1The Festo AEN-25- compact pneumatic cylinder features a stroke length of 1 mm to 25 mm, making it versatile for a range of applications.
- 2With a piston diameter of 25 mm, this cylinder offers robust performance and durability, ensuring reliable operation in demanding environments.
- 3Equipped with elastic cushioning rings/plates at both ends, the AEN-25- provides smooth operation and reduces wear on the cylinder, extending its lifespan.
- 4The cylinder is designed to be mounted in any position, offering flexibility in installation and integration into various systems.
- 5Conforming to the ISO 21287 standard, the Festo AEN-25- ensures compliance with industry standards for quality and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 25mm | Piston diameter | 25 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Conforms to standard | ISO 21287 | Structural design | Piston Piston rod Profile barrel |
Position sensing | For proximity sensor | Variants | Improved running performance Extended external thread piston rod Special thread on piston rod Extended piston rod With anti-twist protection Heat-resistant seals max. 120°C Laser etched rating plate Pulling Piston rod at one end |
Operating pressure | 1bar 10bar | Mode of operation | Pushing Single-acting Pulling |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 120°C | Theoretical force at 6 bar, retracting | 196N |
Theoretical force at 6 bar, advancing | 246N | Weight surcharge per 10 mm piston rod extension | 6g |
Weight surcharge per 10 mm piston rod thread extension | 4g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
Manufacturer ID | 536417 |
Specifications may be subject to change without notice
