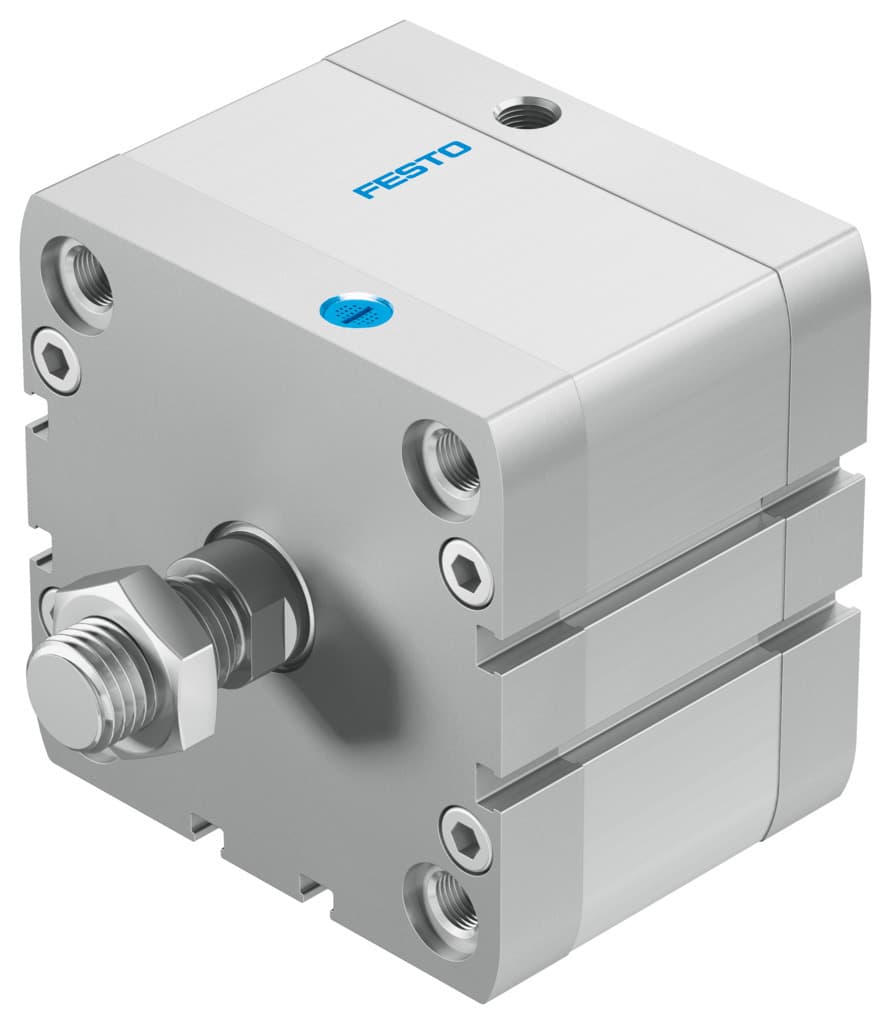

Festo AEN-3" Compact Pneumatic Cylinder - High Precision and Durability

Selling Points

1The AEN-3" cylinder ensures precise movement with its elastic cushioning rings/plates at both ends.
2Built with high-alloy steel piston rods and smooth-anodised aluminium alloy cylinder barrels for maximum durability.
3Suitable for a wide range of applications due to its compact size and versatile mounting options.
4Can be mounted via through-hole, female thread, or with accessories for flexible installation.
5Compatible with compressed air to ISO 8573-1:2010 standards, ensuring reliable operation in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	0.9906mm 24.9936mm	Piston diameter	3"
Based on norm	ISO 21287	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Single-acting
Structural design	Piston Piston rod Profile barrel	Position sensing	For proximity sensor
Variants	Extended external thread piston rod Extended piston rod With anti-twist protection Heat-resistant seals max. 120°C Piston rod at one end	Protection against torsion/guide	Square piston rod
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 120°C
Impact energy in the end positions	0.3498J	Theoretical force at 6 bar, advancing	3016.002N
Type of mounting	Optionally: With through-hole With internal thread With accessories	Pneumatic connection	1/8 NPT
Flange screws material	Steel	Cover material	Die-cast aluminum, coated
Piston rod material	High-alloy steel	Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized
Manufacturer ID	557196
