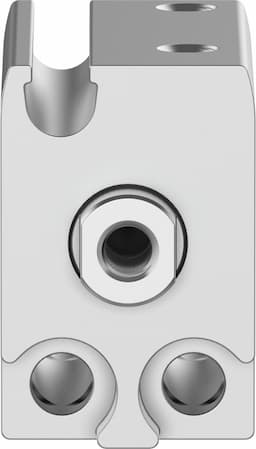

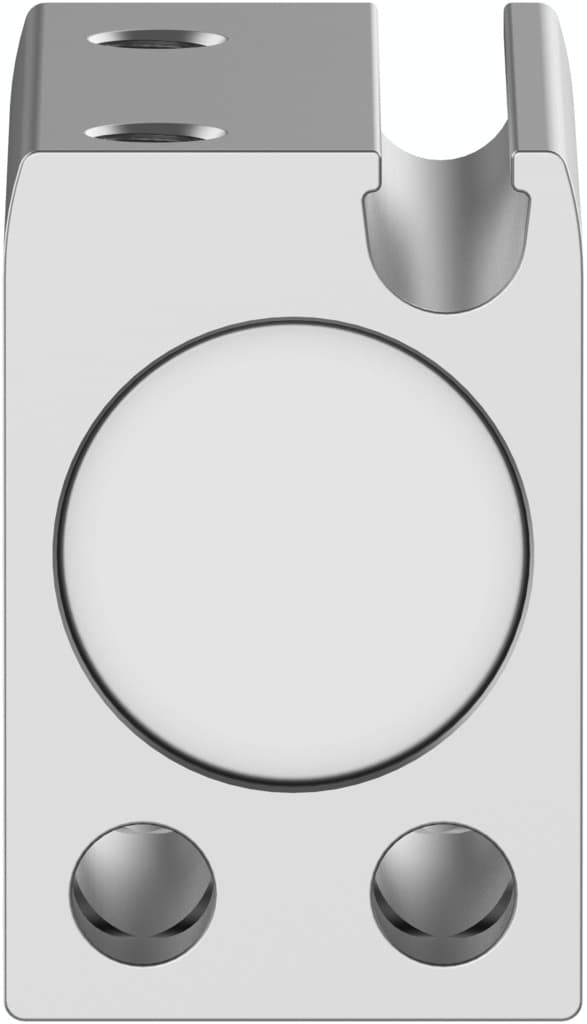

Festo AEN-S-10-10-I Compact Cylinder: High-Quality Pneumatic Solutions

Selling Points

1The Festo AEN-S-10-10-I compact cylinder is engineered for reliable and efficient operation in various pneumatic applications.
2This cylinder offers optional mounting positions, ensuring flexibility in installation and integration.
3With double-acting functionality, the AEN-S-10-10-I can extend and retract, providing comprehensive control over movements.
4Designed to operate with compressed air according to ISO 8573-1:2010, this cylinder ensures consistent performance in a wide range of environments.
5Featuring a moderate corrosion resistance class (CRC 2), the AEN-S-10-10-I is suitable for applications where some level of protection against corrosion is required.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	10mm	Piston diameter	10 mm
Cushioning	No cushioning	Mounting position	Any
Mode of operation	Pushing	Piston rod end	Internal thread
Structural design	Piston Piston rod	Symbol	00991200
Variants	Piston rod at one end	Operating pressure	1.5bar 8bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	-10°C 60°C	Impact energy in the end positions	0.012J
Theoretical force at 6 bar, retracting	5.3N	Theoretical force at 6 bar, advancing	41.7N
Moving mass	5.3g	Product weight	19g
Type of mounting	With through-hole	Pneumatic connection	M3
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy
Material of dynamic seals	NBR TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy stainless steel	Manufacturer ID	4891760

Specifications may be subject to change without notice
